Line Chart

Overview

The primary use of a line chart is to reveal trends or progress over time for a variety of categorical data. Multiple data series can be plotted on the same line chart, which is a particularly useful feature for analyzing and comparing the trends in different datasets. There are three visualization options available for line charts. Click a link to navigate to the examples at the bottom of this page:

• Standard Line Chart
• Filterable Standard Line Chart
• Spline Chart
• Step Chart

Each option accomplishes the same task, but it’s important to select the type that best displays the data set.

Usage

Line charts are typically used to compare changes and show trends. They reveal patterns, trends, relationships and exceptions in data values that are not readily apparent from a table of values. Time series line charts show how one or more variables vary over a continuous period of time.

Use:

• When comparing trends
• When displaying data over time

Don’t Use:

• When comparing totals
• When looking at a specific time

Other Guidance

• Chart Title:  Good titles are invaluable. Your chart title should be long enough so your audience can make sense of the chart. A glance at the title should clearly convey what the chart contains. A good title requires a balance between a short title and one with enough descriptive information to clearly describe the chart.
• Number of Series Lines:  Too many series lines result in visual clutter and make the chart difficult to interpret. One to four lines with a maximum of six lines is recommended. The Chart Builder will support up to nine different colored lines in a line chart. However, if you have more than six sets of quantitative values consider breaking them into multiple charts.
• Grid Lines:  In most cases, both horizontal and vertical grid lines should be hidden to reduce chart clutter. Approximate values can be perceived without grid lines.  When the difference in data values is close, horizontal grid lines can be shown to better support data value comparison.
• Data Source:  The data source makes your graphic more reputable. It also allows those who are interested to dig deeper.
• Outliers in Series Line Data:  If the data set includes an extreme outlier(s) then the visualization will be difficult to process. If the variation can only be seen on a single bar and the rest are flat then it is recommended to do one of the following: Modify the data set to remove / adjust the outlier issue, split the chart into multiple charts or select a different chart type.
• Filtering: Filtering options can be set in the Data Import Wizard. To create a filter, select a data column that describes a variable (gender, age group, etc.) and provide a label. This creates a drop-down menu with the possible options for the specified data column. When a site visitor changes the drop-down selection, the chart and data are refreshed to show only the rows of data for the selected label. Note that filters can be applied only to a “Columns and Rows combined” data set, the second option in the data-import screen capture below. See chart example.
• Social Media Sharing:  The Chart Configuration tool allows you to specify a URL, title, and description for social media posts.  It also supports display of the chart embed code for copying.

Chart Color Palettes

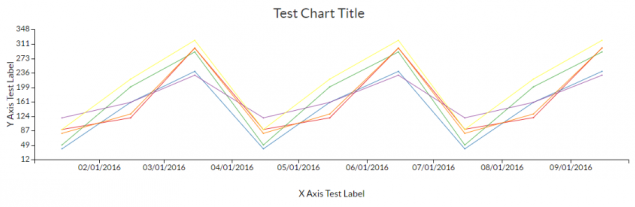

Standard Line Chart
