Overview

Waffle charts provide a visually engaging way to display a data point in relationship to a whole, much like a pie chart.  To create a waffle chart, you specify a numerator and a denominator. The chart tool calculates the ratio and represents the result with circles, squares, or person icons.

As a reusable Data Visualization module, these waffle charts can be reused across a site and updated in a single editor.

The picture below is an example featuring the elements of a waffle chart.  Go to examples at the bottom of this page to see some of the additional design and configuration options.

Related Topics
Visualization

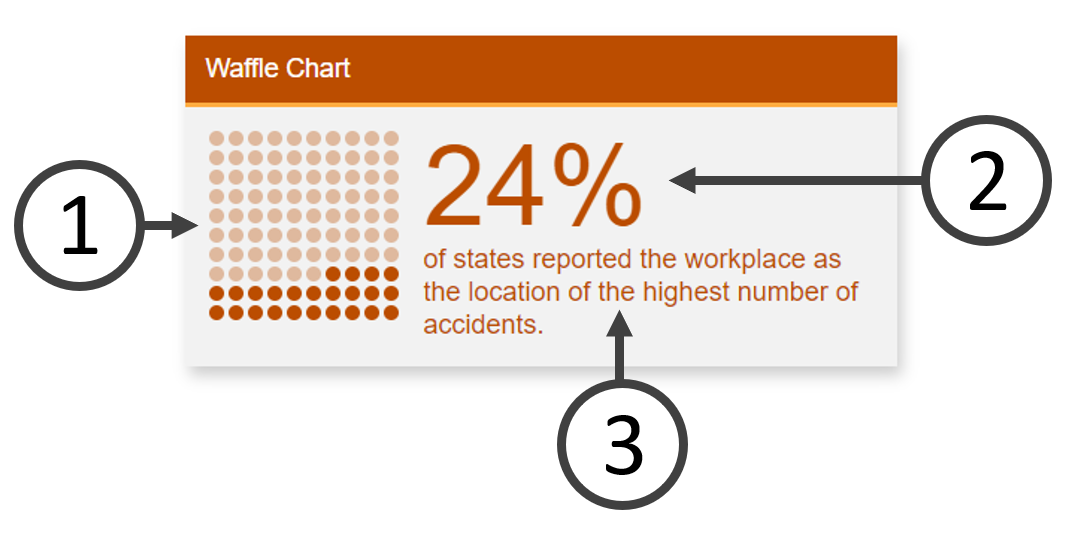

Screen Capture of A Waffle Chart with labels that correspond to features listed below

1. Waffle Chart Visual

This visually customizable chart can be displayed as circles, squares, and person icons.  This chart reflects the calculation of the data selections made in the Visualization Editor.  Style and location variations are available.

2. Numerical Result

In addition to the waffle visualization, the tool shows the number calculated from the data specified in the Visualization Editor.  For the numerator, you select the source data and a function (Sum, Median, etc.). You can also apply a condition.  For the denominator, you can specify a number (the default is 100) or you can select source data and a function.  (At the time of this writing, you cannot specify a condition on the denominator calculation, but a fix is planned.)

With a data source that includes a column for Total Cases and a column for Sex, here is how a waffle chart showing the percentage of male cases could be set up:

Numerator = Sum of Total Cases where Sex = Male
Denominator = Sum of Total Cases

3. Supporting Text

The customizable supporting text can provide context for the number and visualization above.

Usage

Waffle charts, like data bites, provide a way to aggregate data into a single value and provide manually created textual context about that value.
Use:
  • When user needs to place emphasis on parts-to-whole contribution.
  • To visualize whole number percentages. Waffle charts can show the value of a single percent more clearly than a pie or donut chart.

Don’t Use:

  • If isolating one point of data tells an incomplete perspective.
  • If the supporting text needs to be more than three lines.
  • If there are many points of data contributing to a whole.
  • For visualizing precise percentages with fractions of a percent.
  • For values that exceed 100%. (It will completely fill the Waffle Chart)

Other Guidance

  • Waffle Chart Title:  Good titles are invaluable. Your data bite title should be long enough so that your audience can make sense of the relationships between the elements.   A glance at the title should clearly convey what the data bite contains.
  • Subtext/Citation:  The data source makes your graphic more reputable. It also allows those who are interested to dig deeper.

Customization

Customizations exist for colors, font, and imagery in the Visualization Editor.  If a series of visualizations are presented together, it is recommended to make similar visual selections across the series for coherence.

Most inline styling can be applied to the Title, Message, and Subtext portions of the waffle chart text.

Examples

Data Bites are a static data visualization type, unless used in a dashboard.  Each example shows a different way visual information can be arranged through different layouts and data configurations.

Count Comparison

This waffle chart shows the graphic on left calculating the percentage of Federal inputs against total number of inputs.

Top of Page

Average Compared to Max Value

This waffle chart is calculating the average of all inputs and then compares it against the maximum number in the data column.  The vertical configuration was selected.

Top of Page

Filtered Minimum Compared to Total Amount

This waffle chart has been filtered within the module editor to reflect only data from California in the year 2019.
