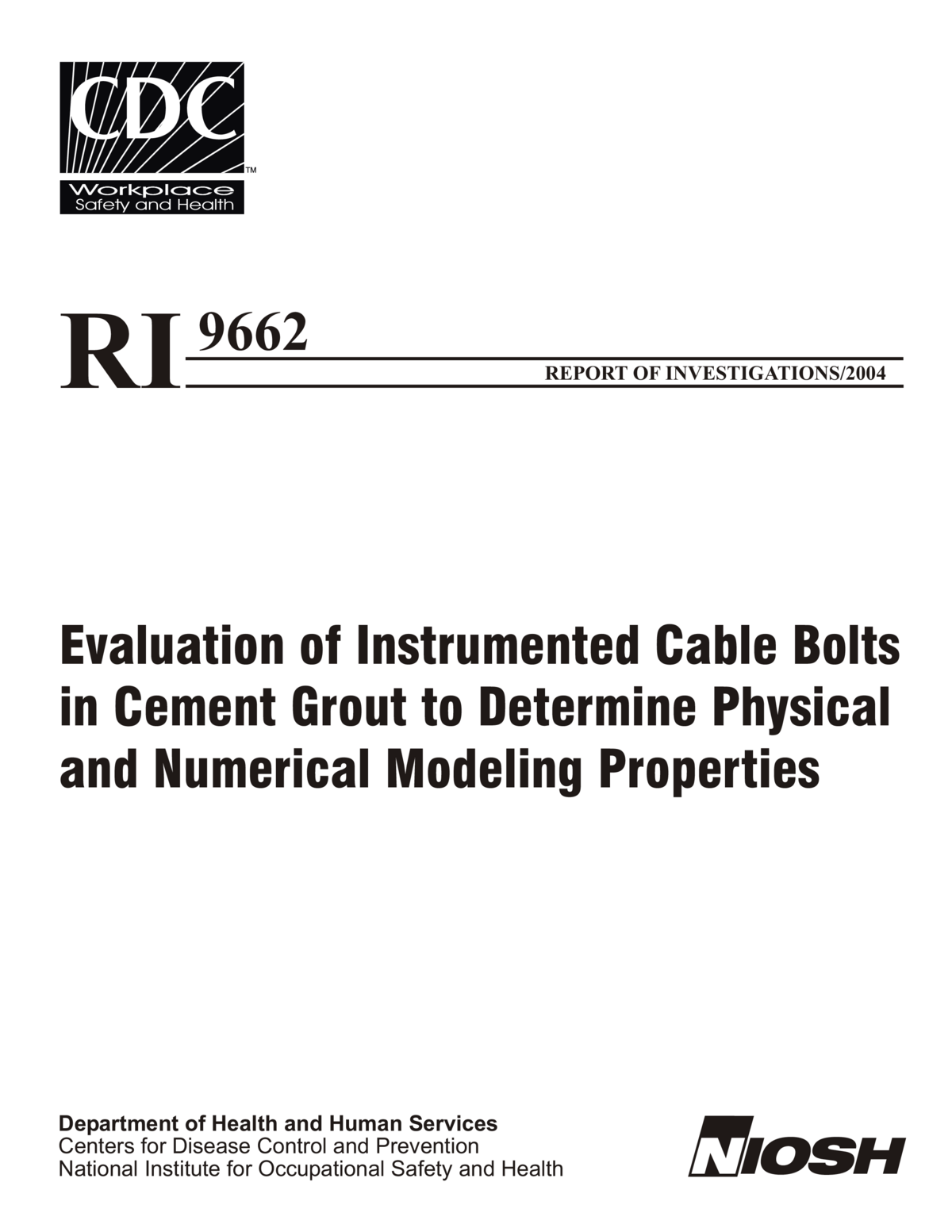

Evaluation of Instrumented Cable Bolts in Cement Grout to Determine Physical and Numerical Modeling Properties

Researchers are investigating the physical properties of cable bolts by replacing the conventional king wire with a modified king wire on which strain gauges have been installed. A numerical analysis was performed to match laboratory results. This paper documents test results on these modified cable bolts. The instrumented cable bolt provided reproducible point measurements of cable load as opposed to load measurements averaged over long cable lengths. Such point measurements can assist in interpreting the influence of cable confinement, grout quality, rock mass stiffness, and other factors. The instrumented cable bolt is a practical field and research tool because it can predict point loading along the cable.
