Construction Equipment Visibility: Volvo L110E

What to know

Blind area diagrams represent the operator's ability to see objects at different elevations.

Volvo L110E

Specifications

GVW:
40,000 lbs.
Machine Dimensions:
9′ 5″ wide (bucket) 26′ 3″ long
Operator Enclosure:
Closed ROPS
Attachments:
None
Other Information:
None
Measurement Technique:
Physical

Ground level

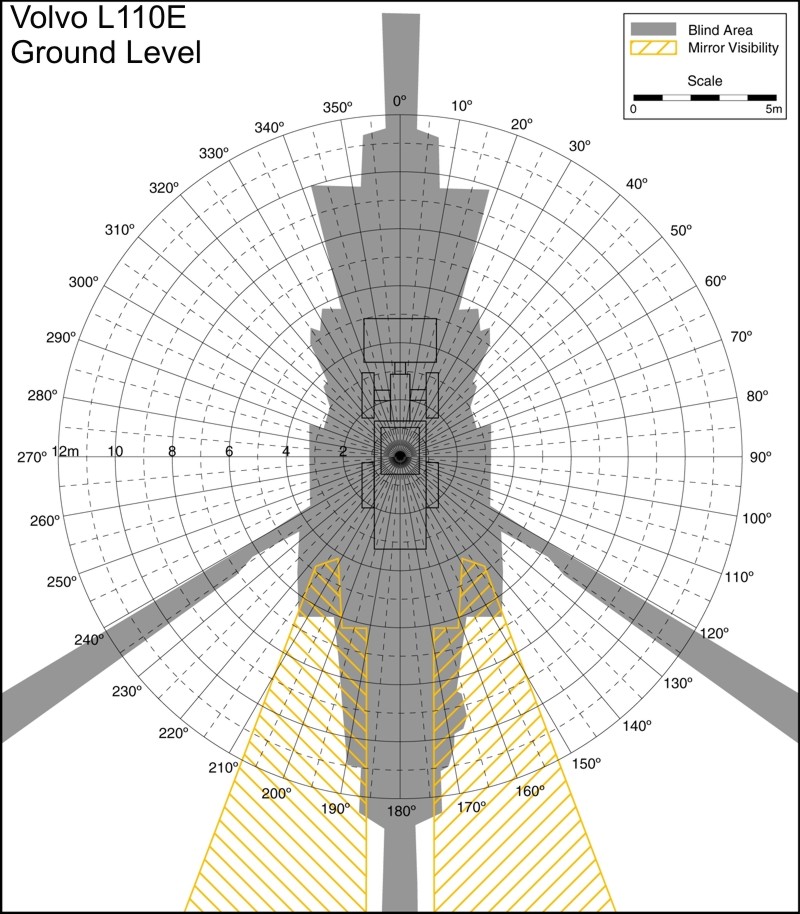

Volvo L110E Ground Level. Best for printing on letter paper.

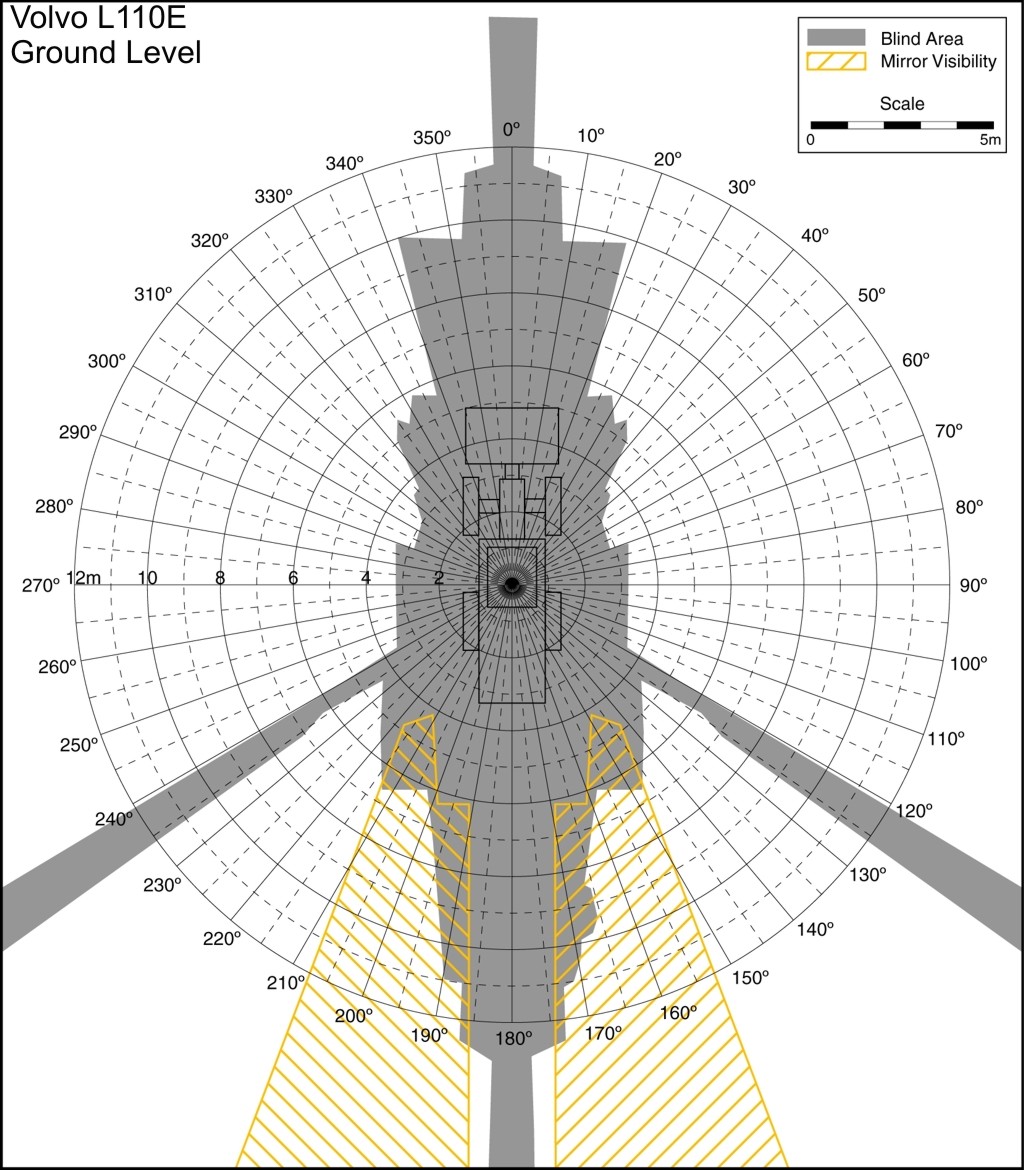

Blind area diagram Volvo L110E ground level

800 x 914 | 1024 x 1170

900mm level

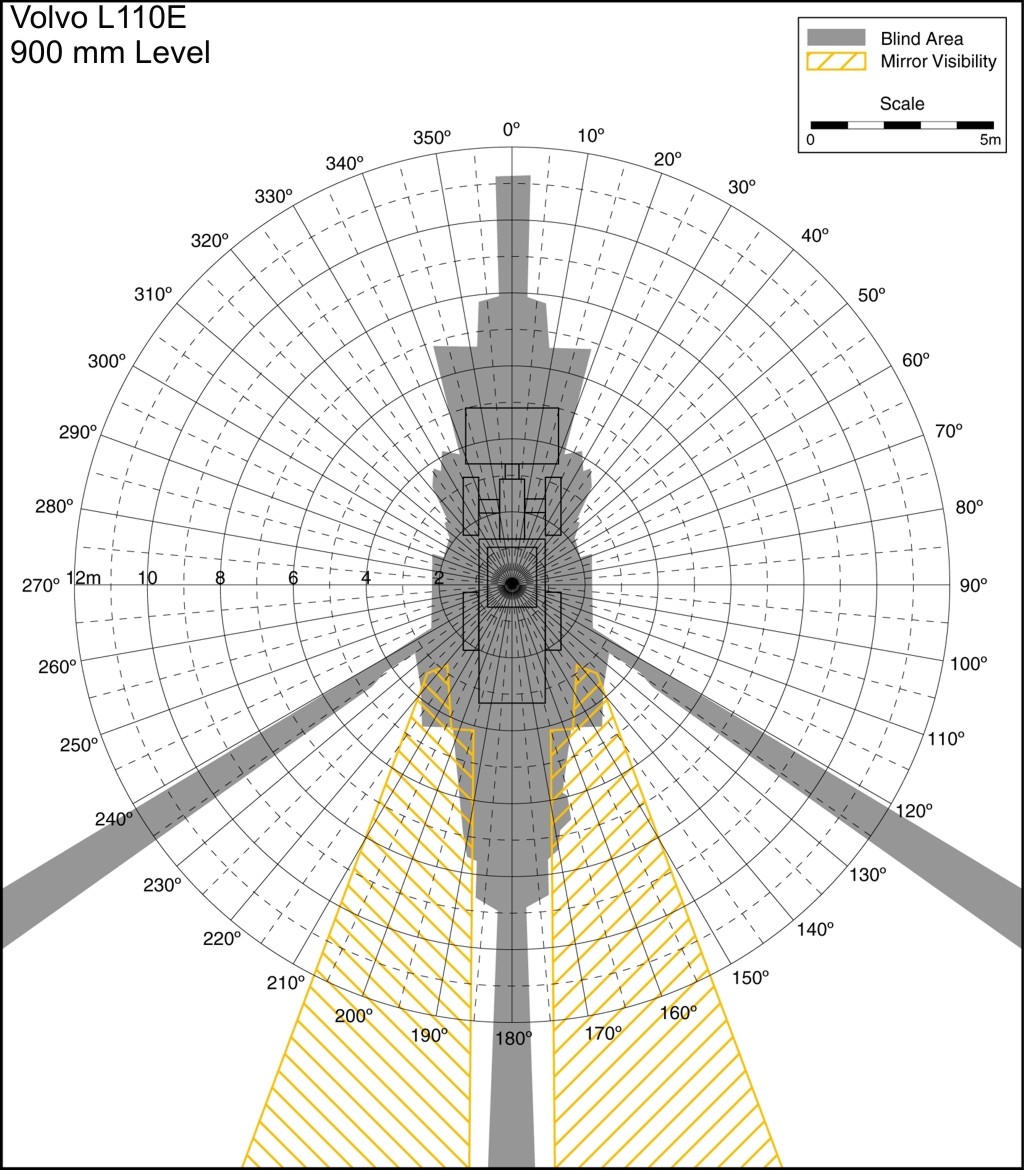

Volvo L110E 900mm Level. Best for printing on letter paper.

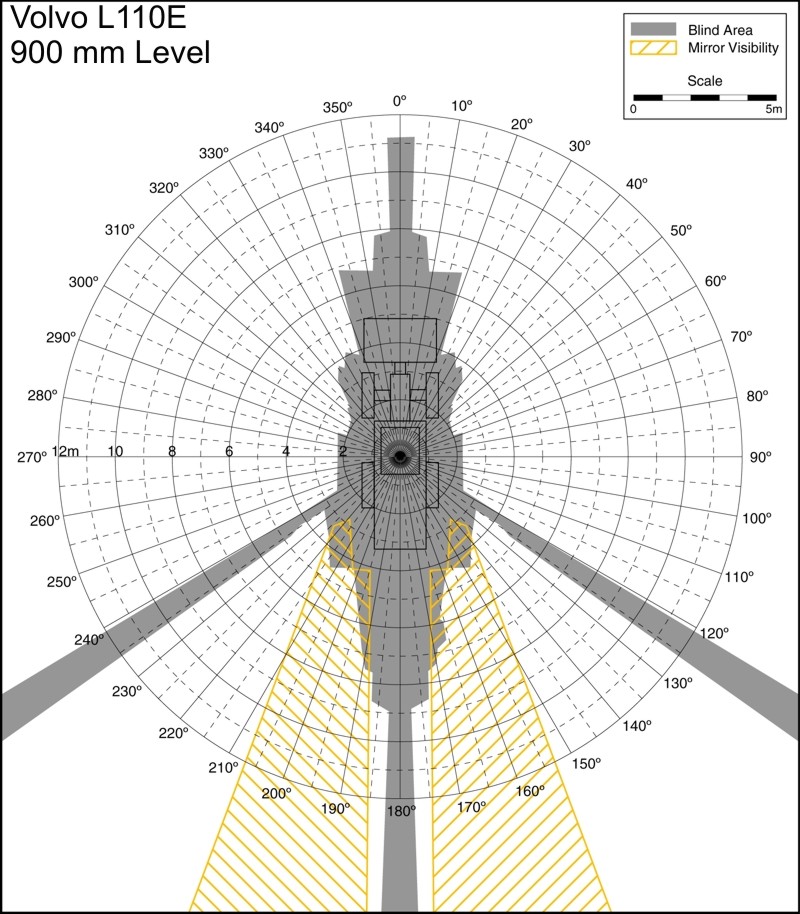

Blind area diagram Volvo L110E 900mm level

800 x 914 | 1024 x 1170

1500mm level

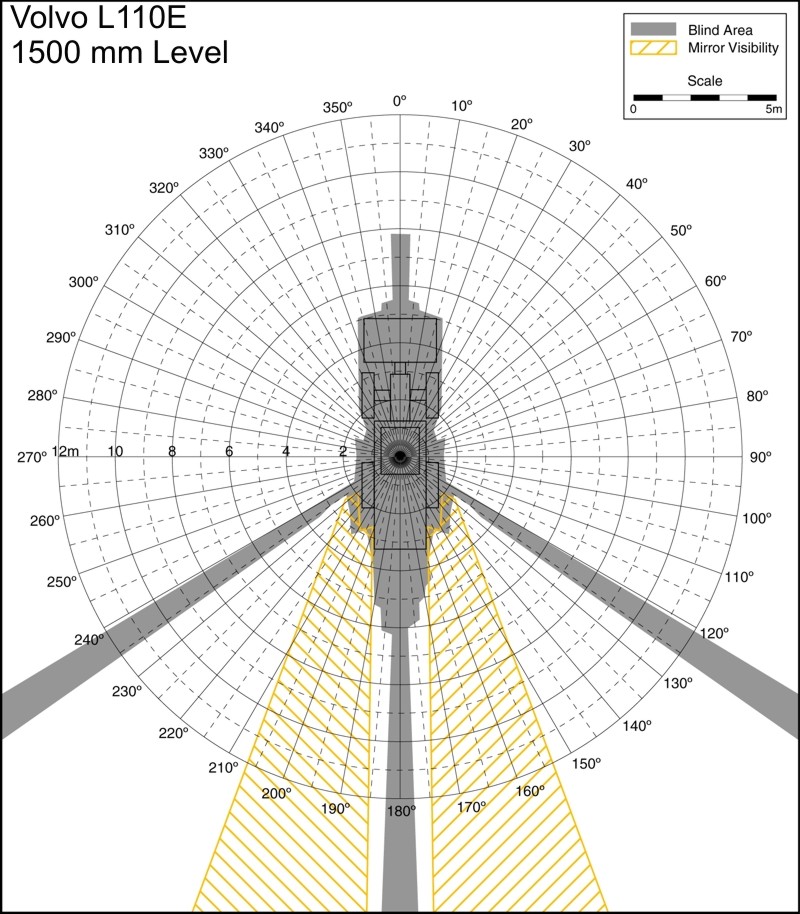

Volvo L110E 1500mm Level. Best for printing on letter paper.
Blind area diagram Volvo L110E 1500mm level

800 x 914 | 1024 x 1170

Print
Content Source:
National Institute for Occupational Safety and Health
