Construction Equipment Visibility: Cat 938

What to know

Blind area diagrams represent the operator's ability to see objects at different elevations.

Cat 938

Specifications

GVW:
29,060 lbs.
Machine Dimensions:
9′ 1″ wide 23′ 8″ long
Operator Enclosure:
Closed ROPS
Attachments:
None
Other Information:
None
Measurement Technique:
Physical

Ground level

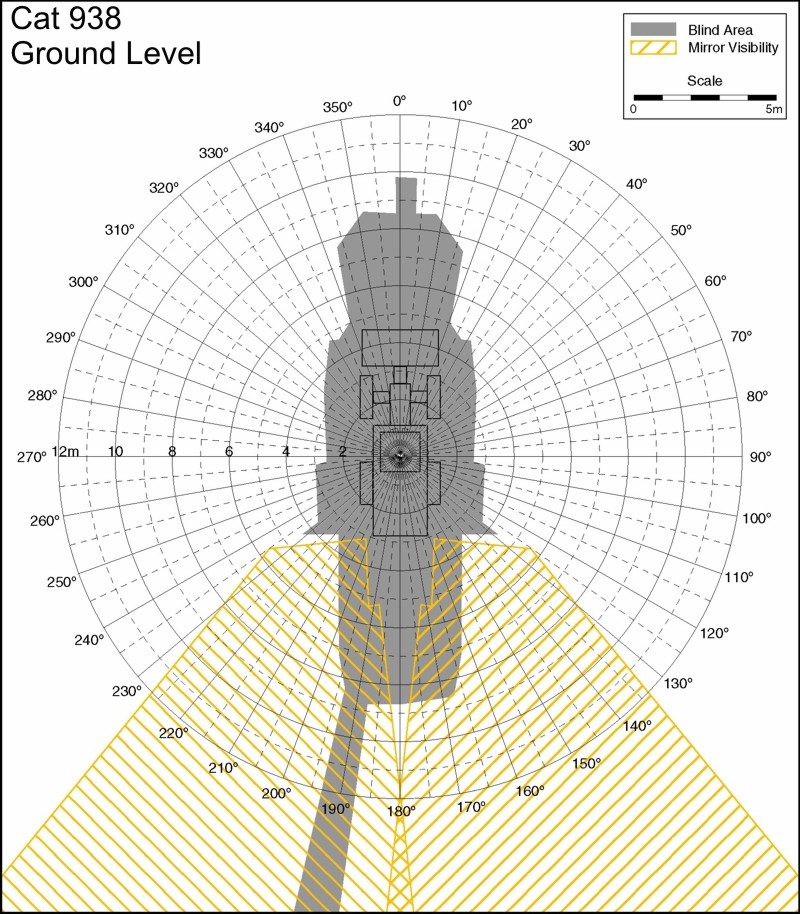

Cat 938 Ground Level. Best for printing on letter paper.
Blind area diagram Cat 938 ground level

800 x 914 | 1024 x 1170

900mm level

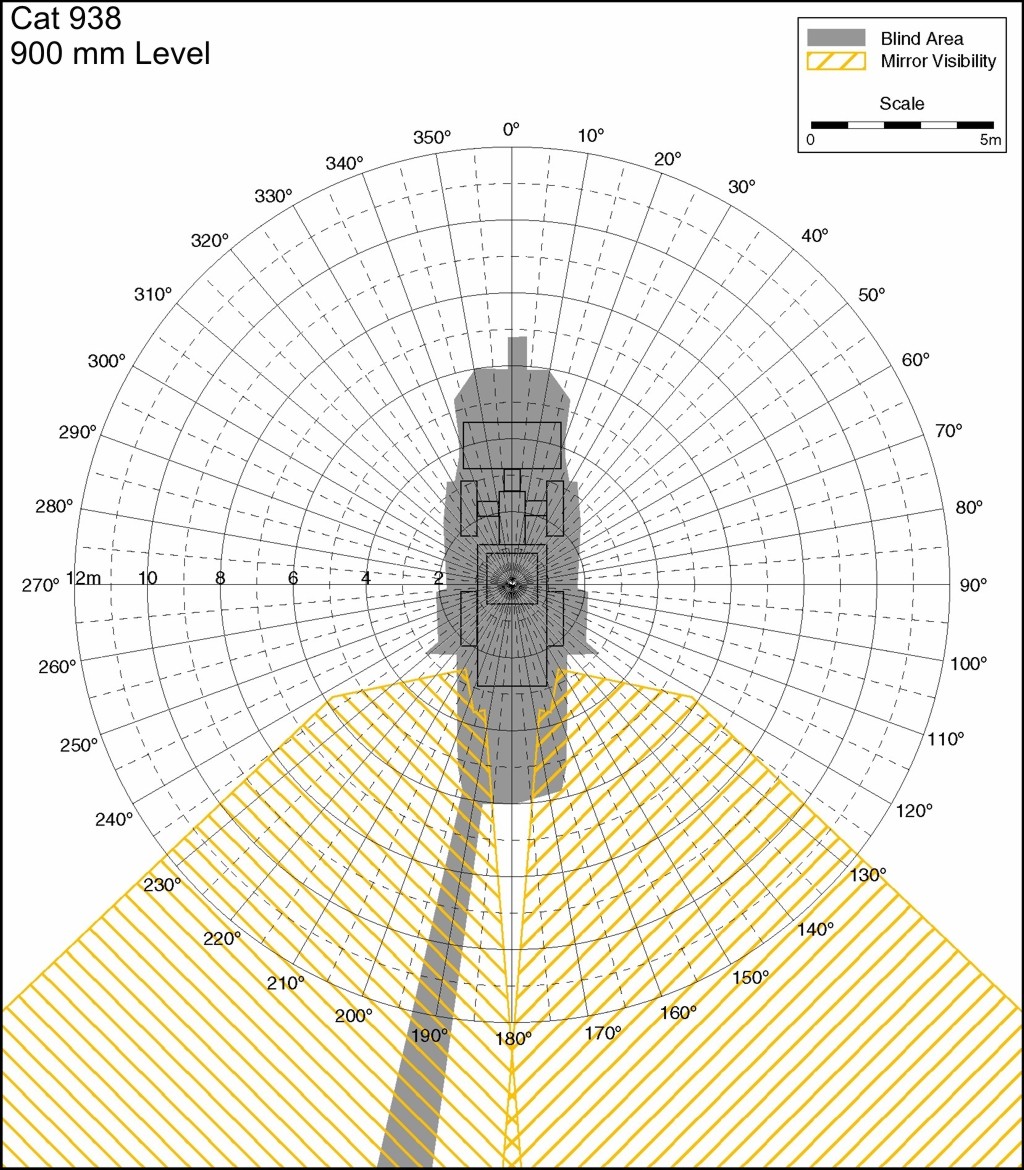

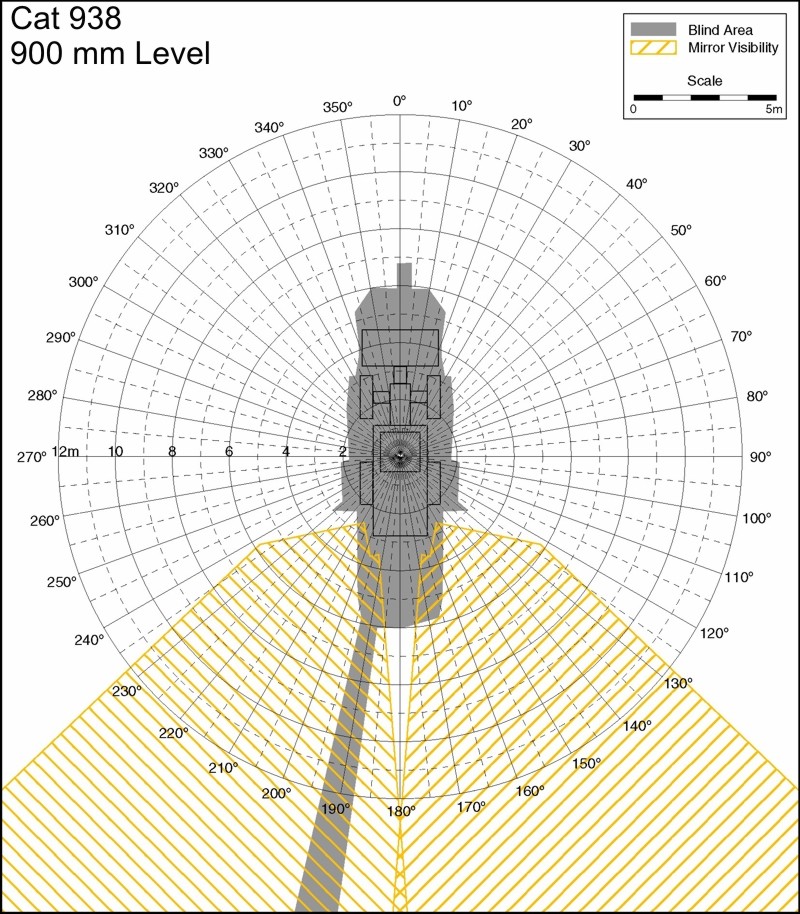

Cat 938 900mm Level. Best for printing on letter paper.
Blind area diagram Cat 938 900mm level

800 x 914 | 1024 x 1170

1500mm level

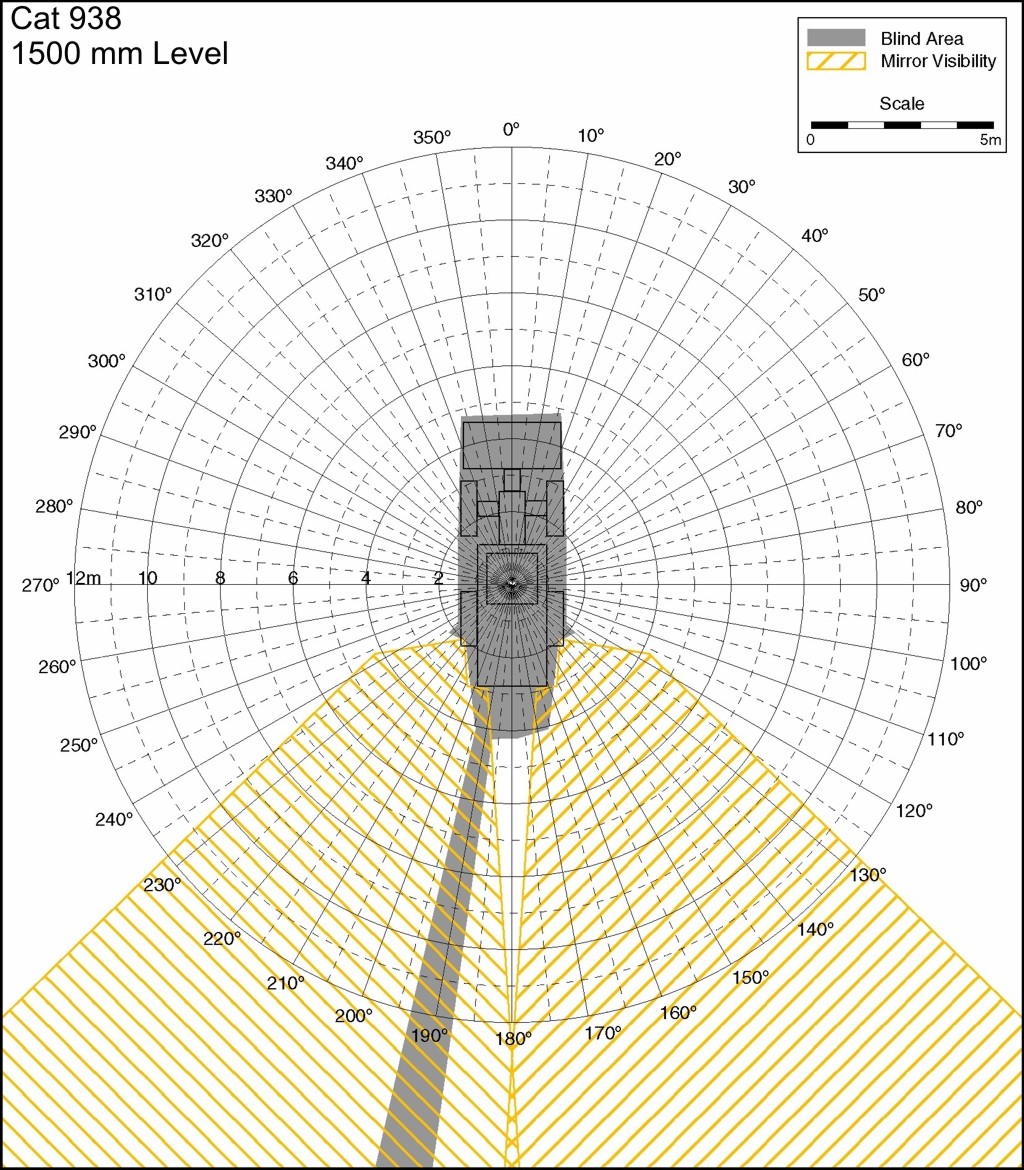

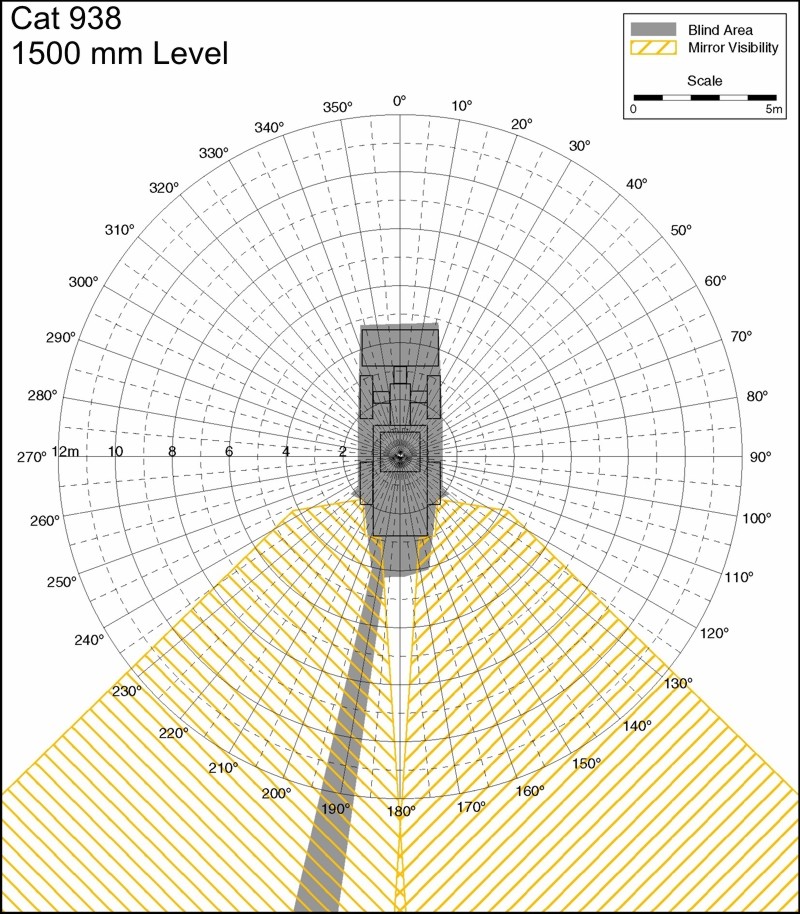

Cat 938 1500mm Level. Best for printing on letter paper.
Blind area diagram Cat 938 1500mm level

800 x 914 | 1024 x 1170

Print
Content Source:
National Institute for Occupational Safety and Health
