Engineering Controls Database
Control of Dust Exposure for Wood Shapers
| Wood shapers are a major source of wood dust emissions | |
| Workers exposed to wood dusts have experienced a variety of adverse health effects such as eye and skin irritation, allergy, reduced lung function, asthma, and nasal cancer. | |
|

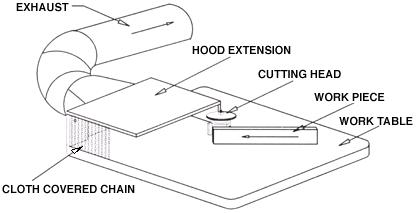

Surveys by NIOSH researchers found that the dust from wood shapers tends to be poorly controlled. The amount of wood dust emitted was found to depend on the sharpness of the cutter, the depth of the cut, the rate at which the wood is fed into the shaper, and the location of the exhaust hood. After studying the usual hood exhaust placement, researchers developed an improved hood configuration that significantly reduced wood dust emissions. Wood shaper emissions are usually controlled by an exhaust hood located at the back edge of the work table which allows the operator to freely move the workpiece over the table. Placing the exhaust hood nearer the cutting head would maximize dust collection, however, this would restrict the operator's freedom to move the workpiece. To overcome this problem, a hood extension with a flexible face opening is added. The flexible face opening consists of cloth-covered chains that allow the wood to pass through, but stops the wood dust particles. The extension also increases the hood face velocity by minimizing the open face area.  |
|
| 180-05-A; 180-05-B; 180-05-C; 180-05-D; 180-05-E; 180-05-F; 180-05-G; 180-05-H; 180-05-I; 180-05-J1; 180-05-J2; 180-05-K1; 180-05-K2; 180-05-L; 180-05-M; 180-05-N; 180-05-O; 180-05-P; 180-05-Q; 180-05-R; 180-05-S; 180-05-T; 180-05-U; 180-05-V; 180-11-A; 185-05-A; 185-05-B; 185-05-C; 185-05-D; | |
| 33321;4213 | |
|
construction construction wood shaper woodworking woodworking |
