Fast Grid-Based Scan Statistic for Detection of Significant Spatial Disease Clusters

Daniel B. Neill, A. Moore
Carnegie Mellon University, Pittsburgh, Pennsylvania

Corresponding author: Daniel B. Neill, Department of Computer Science, Carnegie Mellon University, 5000 Forbes Ave., Pittsburgh, PA 15213. Telephone: 412-621-2650; E-mail: neill@cs.cmu.edu.

Abstract

Introduction: The spatial scan statistic is a commonly used statistical test for detecting significant disease clusters. However, the time needed to compute the scan statistic increases as the square of the number of data points M, making the test computationally infeasible for large data sets (M >100,000). One solution is to aggregate data points to a uniform grid --- when the grid is dense, the scan statistic can be computed substantially faster, with complexity O(Equation)instead of O(M 2). However, even this approach can require multiple days to compute when M is large. Because disease clusters must be found in minutes rather than days for real-time detection, a more efficient algorithm is needed.

Objectives: Given a grid of squares, where each square has an associated count (number of disease cases) and underlying population, the goal is to quickly find the region with the maximum value of the scan statistic (the most significant disease cluster).

Methods: A multiresolution algorithm is proposed that partitions the grid into overlapping regions, bounds the maximum score of each region, and prunes regions that cannot contain the most significant cluster. This method enables users to search across all possible regions while examining only a fraction of the regions. This reduces complexity to O(M) for dense test regions. As in the original scan statistic, randomization testing is used to calculate the statistical significance (p-value) of the detected cluster. (For additional details, see the full paper at http://www.cs.cmu.edu/~neill/papers/sss-techreport.pdf.)

Results: The algorithm was tested on seven data sets (M ≈ 200,000), including western Pennsylvania emergency department data. The algorithm identified the most significant disease clusters in 20--130 minutes, 20--150 times faster than exhaustive search (Table).

Conclusions: The algorithm results in substantial speedups as compared with exhaustive search, making real-time detection of disease clusters computationally feasible. This algorithm is being applied toward automatic real-time detection of outbreaks.

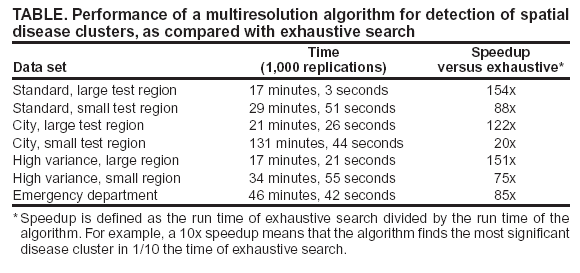

Table

Table 1
