Status of State Electronic Disease Surveillance Systems --- United States, 2007

The National Electronic Disease Surveillance System (NEDSS) is a web-based system that uses standard health information technology (IT) codes to integrate disease surveillance systems, enabling them to transfer public health, laboratory, and clinical data securely from health-care providers to public health departments (1). Each jurisdictions' system consists of a base system and modules that can be used for specific surveillance purposes. States also use NEDSS-like or other electronic systems to conduct surveillance on specific diseases or conditions.* Until recently, no assessment had been done to describe the status and characteristics of state electronic disease surveillance systems. The Council of State and Territorial Epidemiologists (CSTE) conducted such an assessment in August 2007 in all 50 states. This report presents the results of that assessment, which indicated that, in 2007, state electronic disease surveillance systems varied widely and were in various stages of implementation. Each state had either custom-built systems or purchased systems that were customizable, with associated disease modules to meet its own surveillance needs. As interoperability becomes the standard for electronic data sharing, more states will face customization costs and the need to hire more technical specialists who can manage health information and exchange. Further collaboration and support from surveillance and health-care IT stakeholders with public health will be needed to improve the efficacy and quality of electronic disease surveillance systems.

States have developed their electronic disease surveillance systems in a multitude of ways, and states use a combination of vendor products, CDC electronic systems, and state-developed surveillance systems. Some electronic systems are disease specific (e.g., human immunodeficiency virus [HIV]/acquired immunodeficiency syndrome [AIDS] and tuberculosis [TB]), and others serve a particular purpose (e.g., outbreak management, electronic laboratory reporting). In 2000, CDC developed the NEDSS Base System, a platform for disease-specific modules, which it supports and provides to states for use in surveillance. Except for the hardware costs, states using the NEDSS Base System generally incur only commercial software maintenance fees and licenses. States and vendors have developed enhancements that facilitate surveillance through electronic laboratory reporting, geographic information mapping, and outbreak management software.

In 2007, the NEDSS and Architecture Subcommittee of CSTE developed a survey to assess the status, progress, and features of the various electronic surveillance systems used by states nationwide. CSTE distributed the questionnaire electronically to NEDSS project managers or their designees in each state, who completed a series of multiple-choice questions on the operational status and integration levels of their systems and provided additional data on how their system software was developed. The questionnaire also asked respondents to provide vendor information and to comment on other aspects of their systems.

The assessment collected data on five NEDSS Base System, NEDSS-like, or separate, web-based electronic surveillance systems used by most states: communicable human diseases, HIV/AIDS, lead exposure, sexually transmitted diseases other than HIV/AIDS, and TB. The questionnaire also collected information about IT enhancements, such as electronic laboratory reporting, geographic information mapping, Master Patient Index,§ and outbreak management systems to assess their level of potential integration with other systems and their development status.

For the assessment, CSTE defined "interoperability" as the extent to which the configuration of a surveillance system allowed exchange of information by electronically connecting various stand-alone, disease-specific modules within the state or allowed exchange of information among dissimilar systems in different states. CSTE defined "integration" as the extent to which a system included all of the separate disease modules in the same system.

All 50 states responded to the assessment questionnaire, but not all states answered all questions. Sixteen (32%) states reported using the NEDSS Base System as their general communicable disease electronic surveillance system. The remaining 34 (68%) states reported using some combination of commercial, CDC, or state-developed electronic surveillance systems to meet their needs. Among the 50 states, 39 (78%) reported that at least one aspect of their surveillance systems was under development or planned, and 35 (70%) reported that their system could send a message about communicable disease in Health Level Seven (HL7)** format to CDC. Among the 40 states with an operational electronic surveillance system (i.e., fully functional and currently in use) for general communicable disease surveillance, 23 (58%) reported having an integrated system, 15 (38%) had stand-alone systems, and two (5%) did not designate whether their system was integrated or stand alone. The 10 states without fully functional and operational systems were in the process of developing one or more aspects of their electronic disease surveillance system at the time of the assessment.

Results of the assessment indicated that web-based HIV/AIDS surveillance systems were mostly stand-alone systems (Table 1). Among 41 states, 17 (41%) reported having an operational and fully implemented web-based lead poisoning surveillance system. Among the 22 states with fully functional, web-based TB case-reporting systems, 11 (50%) were integrated and 11 (50%) were stand-alone systems. Eighteen (36%) of 50 states had developed their TB surveillance modules (TB case-management, TB case-reporting, and latent infection tracking) in-house, and TB surveillance systems in seven (14%) states were vendor developed. Fourteen (28%) of 50 states used a CDC-developed solution to meet their TB surveillance needs.

The three most commonly integrated modules were the automated electronic laboratory reporting module, the web-based manual electronic laboratory reporting module, and the Master Patient Index module. Automated and web-based manual electronic laboratory reporting modules differ in the labor involved in entering the information into the system. Automated systems do not require data entry into an online system, whereas the web-based electronic laboratory reporting modules do. These more recently developed modules were more commonly integrated into the general communicable disease systems than were stand-alone HIV/AIDS and TB surveillance modules. Among the 50 states, eight reported having functional outbreak management systems, among which four each had stand-alone systems and integrated systems. Outbreak management systems in 20 states were either under development or targeted for future development, and 22 states did not report having an outbreak management system. Four states reported having source code of the general communicable disease surveillance system available to the general public for use or modification from its original design free of charge and were willing to share state written code with any interested state or local health departments.

Among the 50 states, 13 (26%) reported achieving interoperability among two or more surveillance modules, and seven (14%) reported future plans for interoperability. Twenty-eight (56%) states were acquiring new technology and software and hardware required by the system to support interoperability, and one state did not respond to the question. Combined software and hardware costs ranged from $250,000 to $1 million for electronic disease surveillance systems, without additional customization. For most states, software costs were <$250,000 (Figure). The 29 states reporting hardware costs indicated approximate costs of <$250,000 to enable interoperation with another state system, without customization. Additional costs cited by respondents included annual licensing fees from software developers/vendors, security customization fees, and costs associated with tailoring a surveillance system to state or local needs (ranging from $20,000 to $50,000). The assessment indicated no clear association between software cost and state population.

States averaged two to three (range: 1--12) full-time equivalents (FTEs) for each IT role (Table 2). States with mid-sized to large populations reported more FTEs in each IT role than did smaller states, but most states generally had no more than four FTEs for each IT role. These roles were not discrete, and FTEs might have performed overlapping duties among the various roles.

Reported by: L Dwyer, MPH, Council of State and Territorial Epidemiologists, Atlanta; KL Foster, MA, Decatur, Georgia; T Safranek, MD, Nebraska Dept of Health and Human Svcs.

Editorial Note:

This is the first assessment on the status of implementation of state electronic disease surveillance systems and to assess states' progress in improving various aspects of their surveillance systems. All information provided by the states was representative of their web-based electronic disease surveillance systems. IT enhancements were not necessarily web-based, although the manual web-based electronic laboratory reporting IT enhancement was designated as such. The results revealed substantial variation in how states developed their electronic disease surveillance systems, and also that they were strongly committed to making their surveillance systems interoperable.The assessment also revealed a shift toward integrated electronic disease surveillance systems and increased attempts to achieve interoperability among systems within states. As interoperability becomes the standard for electronic data sharing, more states will face customization costs and increasing demand for IT personnel in the workforce.

In this analysis, the most common stand-alone systems were HIV/AIDS and lead surveillance modules. Several policy and ethical reasons require that some surveillance systems have a lower level of integration than others (2). For example, special needs for patient privacy and data security might explain why the HIV/AIDS surveillance modules are stand alone in certain states. This assessment did not collect information on the data confidentiality concerns of specific electronic modules.

States will need to upgrade or replace aging electronic surveillance systems to continue meeting public health needs and to conform to current IT standards. Results from the assessment described in this report indicate that the financial costs of this will be substantial. Sufficient resources from surveillance and health-care IT stakeholders will be needed to support the growing electronic infrastructure and to improve the efficacy and quality of electronic disease surveillance systems.

The findings in this report are subject to at least two limitations. First, because the assessment did not ask states to indicate whether IT staff had multiple roles, the actual number of FTEs might be reported incorrectly if staff perform a variety of duties or overlap in the roles provided. Second, the use of self-report for data collection can lead to reporting bias. Respondents might not have been fully aware of the implementation or funding status of their states' electronic disease surveillance systems. However, the data were analyzed in aggregate so that no individual state's electronic surveillance systems were known or assessed. In addition, the state epidemiologist often either provided the responses to the assessment or was informed of the results of the assessment and had an opportunity to correct any inconsistencies in the results.

CSTE plans to continue to evaluate the status and capacity of the states to use electronic disease surveillance systems. State health departments and NEDSS project managers are using these data to help find novel solutions for state electronic surveillance systems. The ultimate vision is to increase the connectivity of federal and state surveillance systems that can transfer appropriate public health, laboratory, and clinical data efficiently and securely over the Internet.

References

  1. CDC. NEDSS: National Electronic Disease Surveillance System. CDC Solutions; 2007. Available at http://www.cdc.gov/phin/library/documents/pdf/111759_NEDSS.pdf.
  2. Fairchild AL, Gable L, Gostin LO, Bayer R, Sweeney P, Janssen RS. Public goods, private data: HIV and the history, ethics, and uses of identifiable public health information. Public Health Rep 2007;122(Suppl 1):7--15.

* The type of systems developed and implemented include federal (e.g., CDC's NEDSS Base System), state (e.g., Pennsylvania PA-NEDSS or Florida's Merlin System), and vendor (i.e., commercial off-the-shelf). The term NEDSS-like is commonly referred to state and vender developed system, but regardless of the term, each adheres to the principles of the NEDSS mission..

Examples of CDC-created special use electronic surveillance systems include eHARS (human immunodeficiency virus/acquired immunodeficiency virus), STD*MIS (sexually transmitted diseases), and TIMS (tuberculosis surveillance).

§ Master Patient Index technology is used to maintain a master list of all patients in an area or organization. It provides a platform to correlate and cross-reference patient records across public health systems and registries.

Outbreak management systems can generate questionnaires, perform analyses, issue reports, manage case and contact investigations, and perform other epidemiologic functions. It allows public health agencies respond to emergencies and outbreaks. Outbreak management systems often are used to manage patient tracking information for case follow-up.

** States use HL7 format to transmit health-care data between computer systems. HL7 develops standards for structuring, encoding, and supporting patient care when data are exchanged electronically between computer applications. These standards ensure that the character of the data is not obscured or modified when sent electronically between health-care and state or local public health agencies. Additional information is available at http://www.hl7.org.

TABLE 1. Number and percentage of states reporting components of fully operational and implemented electronic disease surveillance systems* --- United States, 2007

Component (no. of states responding)

No.

(%)

General communicable disease surveillance (web-based) (40)

Integrated

23

(58)

Stand-alone

15

(38)

Unspecified

2

(5)

HIV/AIDS surveillance (web-based) (18)

Integrated

1

(6)

Stand-alone

15

(83)

Unspecified

2

(11)

Tuberculosis case-reporting
(web-based) (22)

Integrated

11

(50)

Stand-alone

11

(50)

Lead poisoning surveillance
(web-based) (17)

Integrated

5

(29)

Stand-alone

11

(65)

Unspecified

1

(6)

Automated electronic laboratory
reporting (28)

Integrated

20

(71)

Stand-alone

4

(14)

Unspecified

4

(14)

Manual electronic laboratory reporting
(web-based) (24)

Integrated

15

(63)

Stand-alone

5

(21)

Unspecified

4

(17)

Master Patient Index§ (21)

Integrated

9

(43)

Stand-alone

2

(10)

Unspecified

10

(48)

Outbreak management system (8)

Integrated

4

(50)

Stand-alone

4

(50)

* Operational and implemented electronic disease surveillance systems are systems that are routinely used by the state and are functional for surveillance purposes.

Integration defined as configuration of a system to include all of the separate disease modules together in the same system.

§ Master Patient Index technology, which references all patients relating to an area or organization, is a source of user demographic data for other linked services and systems.

Outbreak management systems can generate questionnaires, perform analyses, issue reports, manage case and contact investigations, and perform other epidemiologic functions. It allows public health agencies respond to emergencies and outbreaks. Outbreak management systems often are used to manage patient tracking information for case follow-up.

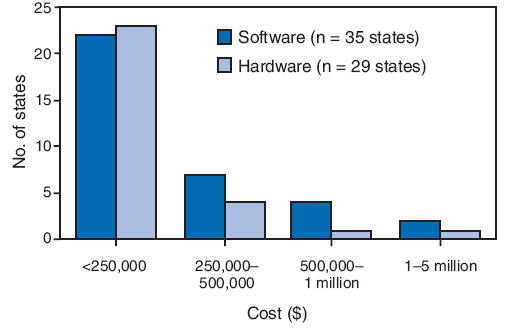

FIGURE. Approximate costs to deploy software and hardware for state electronic disease surveillance systems --- United States, 2007

The figure shows the approximate costs to deploy software and hardware for electronic disease surveillance systems in the United States as of 2007. Combined software and hardware costs ranged from $250,000 to $1 million for electronic disease surveillance systems, without additional customization. Software costs for most of the 35 states that reported data were <$250,000. The 29 states reporting hardware costs indicated approximate costs of <$250,000 to enable interoperation with another state system, without customization. Additional costs cited by respondents included annual licensing fees from software developers/vendors, security customization fees, and costs associated with tailoring a surveillance system to state or local needs (ranging from $20,000 to $50,000). The assessment indicated no clear association between software cost and state population.

Alternative Text: The figure above shows the approximate costs to deploy software and hardware for electronic disease surveillance systems in the United States as of 2007. Combined software and hardware costs ranged from $250,000 to $1 million for electronic disease surveillance systems, without additional customization. Software costs for most of the 35 states that reported data were <$250,000. The 29 states reporting hardware costs indicated approximate costs of <$250,000 to enable interoperation with another state system, without customization. Additional costs cited by respondents included annual licensing fees from software developers/vendors, security customization fees, and costs associated with tailoring a surveillance system to state or local needs (ranging from $20,000 to $50,000). The assessment indicated no clear association between software cost and state population.

TABLE 2. Number of full-time equivalents (FTEs) allocated to information technology (IT) functions supporting disease surveillance among 49 states,* by state population and number of FTEs in each role --- United States, 2007

State population (no. of states)

<1 million (n = 7)

1--5 million (n = 21)

>5--10 million (n = 13)

>10 million (n = 8)

IT role

FTEs

No. states

FTEs

No. states

FTEs

No. states

FTEs

No. states

Application management/
Training/User support

1

7

1

10

1

2

1

1

2

7

2

3

2

1

4

1

3

1

3

3

5

1

4

3

4

2

5

1

Maintenance

1

4

1

14

1

4

1

2

2

1

2

3

2

4

2

2

3

2

3

1

3

2

4

1

11

1

Ongoing programming

1

2

1

9

1

4

---§

1

2

1

2

2

2

2

3

2

4

1

3

1

5

1

5

1

9

1

* One state among 50 did not provide information on FTE allocations.

IT role might not be discrete job assignment in each state, and the FTEs reported might perform more than one job function.

§ Number unknown.
