Oklahoma Case Report: 05-OK-040-01

Summary

A 56-year-old gas well drilling floorhand died on May 30, 2005 from chest trauma he received after being struck by a hoisted wellhead stack that overturned. The stack was composed of a lower spool, blowout preventer (BOP), upper spool, and a rotary head. The crew was attempting to replace the lower spool at the time of incident. As the victim and a coworker attempted to pry the lower spool loose, the 18,000-pound, top-heavy equipment overturned, pinning the victim to the ground and striking the coworker. Other crew members immediately freed the victim and called for emergency response. Emergency medical services (EMS) arrived at the scene and transported the victim to the nearest hospital. He was then transported by helicopter to another hospital where he was pronounced dead in the emergency room.

Oklahoma Fatality Assessment and Control Evaluation (OKFACE) investigators concluded that to help prevent similar occurrences, employers should:

  • Ensure that employees do not position themselves under suspended loads.

  • Develop, implement, and enforce a comprehensive safety and health program that includes safe operating procedures for lifting/hoisting operations and compliance monitoring.

  • Develop written contracts that establish the chain of command and safety responsibilities of prime and subcontractors.
Figure 1. Drilling site where the incident occurred.
Figure 1. Drilling site where the incident occurred.

Table 1. Helpful Definitions
Blowout
preventer
(BOP)
one or more valves installed at the wellhead to prevent the escape of pressure; since they are critically important to the safety of the crew, the rig, and the wellbore, they are regularly inspected, tested, and refurbished
Drill floor an elevated surface immediately around the rotary table that extends to each corner of the derrick from which crews perform drilling operations; also called the rig floor or derrick floor
Upper/lower
spool
heavy flanged steel fittings that serve as points of attachment for other components, including the blowout preventer
Rotating head a revolving section of wellhead that connects to revolving drilling components located on the drilling floor
Wellbore a hole made by the drilling bit that can be open, cased, or both; also called the hole, well, or borehole
Wellhead the equipment installed at the surface of the wellbore



Introduction

A gas well drilling floorhand died on May 30, 2005 from chest trauma received when he was struck by a hoisted wellhead equipment stack that overturned. OKFACE investigators were notified of the incident and an interview with a company official was conducted on July 7, 2005. OKFACE investigators reviewed the death certificate and reports from the Medical Examiner and the Occupational Safety and Health Administration (OSHA).

Employer:The victim was employed by an oil and gas drilling company. The company drilled well sites for oil and gas exploration companies on a contract basis. The company had been in business for five years and employed 85 full-time workers at the time of incident. The company had a written safety and health program, including written task specific and machine specific instructions for all tasks. The company had an active labor/management safety committee and a management safety and health committee. Written contracts existed between the company and subcontractors that established safety responsibilities.

Victim:The 56-year-old male victim had been working for the oil and gas drilling company for six months. The victim was performing his usual work tasks in his usual work area at the time of the incident. He had 25 years of experience in oil and gas drilling operations.

Training:Site crews conducted weekly safety meetings at all well sites and the company safety officer conducted a safety meeting with all employees every two weeks. Company employees conducted task-specific, machine-specific, and general safety training. Tool pushers (drilling machine operators) and forklift operators were required to complete operator certification training. In addition to hands-on training, equipment manuals, videos, and formal classroom settings were used to train machine operators. Certified machine operators’ proficiency and effects of training were measured through testing and demonstration. All training and safety meetings were documented and kept on file with the company.

Incident Scene:The incident occurred on a gas drill site where the company had been operating for 21 days (Figure 1). The incident took place on the ground under the drill floor at a wellhead (Figure 2 and Table 1). The ground in the area was level, but muddy, and oily.

Weather: On the day of the incident, the weather conditions were warm and sunny.

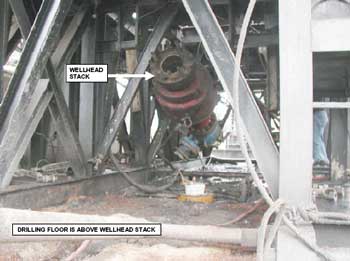

Figure 2. Wellhead stack involved in the incident.
Figure 2. Wellhead stack involved in the incident.
Back to Top

Investigation

The incident involved a wellhead located below the drill floor. The wellhead equipment stack weighed approximately 18,000 pounds and was composed of four stacked components including a lower spool, BOP, upper spool, and rotating head (Figure 3). Under normal operations, wellhead components may be replaced or serviced several times throughout a drilling operation. The wellhead was being removed to replace the lower spool to accommodate a change from 7-inch to 4-inch pipe during the drilling operation. The drilling company had nine employees working at the site at the time of the incident, including a tool pusher designated as the supervisor and two drilling crews of four men each.

Figure 3. Diagram of wellhead stack involved in the incident.
Figure 3. Diagram of wellhead stack involved in the incident.

Employees were wearing hard hats at the time of incident. One of the crews was nearing the end its shift and the second was preparing to start. In addition, a representative (#1) was present from the company holding the property under an oil and gas lease and another representative (#2) from a third company was onsite to deliver the lower spool replacement.

Written standard operating procedures and witness statements from employees indicated that the normal procedure for wellhead removal was to disassemble the wellhead starting from the top and remove each component individually, rather than lift the assembled wellhead as one piece. Disassembly of the wellhead usually took two hours. On the day of the incident, the tool pusher was supervising operations, but left the immediate area to get a drink of water and relinquished control of the wellhead removal to representative #2 who was acting as a third party on site. Representative #2 directed the crew to lift the fully assembled wellhead stack as a single unit to save the time and work of disassembling. Representative #2 directed employees to use a two-chain sling attached to two of the four lifting shackles located on the BOP (Figure 4). According to the BOP manufacturer, all four lifting shackles should be used during lifting operations and were designed only to lift the BOP, not other ancillary equipment. The stack was top-heavy during the lifting operation because the lifting sling was attached to the BOP near the bottom of the wellhead assembly.

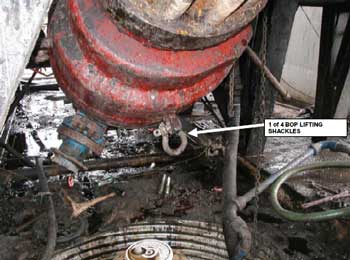

Figure 4. Lifting shackle of blowout preventer (BOP).
Figure 4. Lifting shackle of blowout preventer (BOP).

Witness statements indicated that the wellhead stack had been lifted several times, but the crew had difficulty loosening the lower spool from the BOP. During attempts to remove the lower spool, the lifted wellhead had tipped over without striking anyone. Representative #2 then directed that the twochain sling be rotated 90 degrees to attach to the other two lifting shackles of the BOP than the ones previously used. The points of attachment to the lifting shackles were changed to get more clearance between the wellhead and the bottom of the overhead drill floor. The stack was lifted again while the victim and a coworker used a hammer and crowbar to remove the lower spool. As the lower spool came off the bottom of the BOP, the wellhead tipped over toward the victim and coworker, striking the coworker and pinning the victim to the ground. Coworkers immediately freed the victim and called for emergency response. EMS arrived at the scene within 10 minutes and transported the victim to the nearest hospital. He was transported by helicopter to another hospital where he was pronounced dead a few hours later in the emergency room. The coworker was not hospitalized and suffered primarily bruises, contusions, and abrasions.

Cause of Death

The Medical Examiner’s report listed the cause of death as blunt trauma of the chest.

Back to Top

Recommendations/Discussion

Recommendation # 1: Employers should ensure that employees do not position themselves under suspended loads.

Discussion: The OSHA standards for materials handling and storage that address the use of lifting slings indicate that all employees should be kept clear of loads about to be lifted and of suspended loads. The areas below and adjacent to suspended loads should be controlled access zones. Employees should not occupy controlled access zones while a load is suspended. Employees should use tag lines or other means of remote control to steady and control elevated loads while allowing employees to maintain adequate clearance. Safe working load limits of tag lines should be considered when selecting tag line materials.


Recommendation #2: Employers should develop, implement, and enforce a written comprehensive safety and health program that includes safe operating procedures for lifting/hoisting operations and compliance monitoring.

Discussion: Employers should develop comprehensive, written safety programs that incorporate safe operating procedures for lifting/hoisting operations. Employees should be provided copies of the written program and the material should be in the language and literacy level of the workers. The program should include safe operating procedures related to the disassembly of wellheads before lifting and machinery limitations noted by manufacturers. When written safe operating procedures are being established, manufacturers’ lifting guidelines should be followed. Safe operating procedures should not require employees to lift wellhead stacks as single units if doing so would exceed limitations or recommendations noted by wellhead component manufacturers. Compliance of safe operating procedures should be enforced through random inspections, and corrective action through retraining should be provided as necessary. Tasks should only be directed by employers or their authorized representatives who are knowledgeable of safe operating procedures, and equipment manufacturers’ instructions should always be followed.


Recommendation #3: Employers should develop written contracts that establish the chain of command and safety responsibilities of prime and subcontractors.

Discussion: Contracts should be written with language that addresses the responsibilities of prime contractors, subcontractors, and third-party contractors. The site-controlling party should be identified in the contract and a safety officer should be designated for the controlling party. The contract should clearly state the chain of command that employees from all parties should follow and should provide the safety officer with the authority to stop operations and take corrective action to address potentially life-threatening hazards. The contract should be agreed on and signed in advance of any work that is to be performed. The contracts should include safe work practices and procedures. Each party should have a system to ensure compliance by self-monitoring, monitoring by the other party, or by an outside consultant or other unbiased party.

Back to Top

References

  1. Occupational Safety and Health Administration, 29 CFR 1910.184, Subpart N, Materials Handling and Storage, Slings.

  2. Occupational Safety and Health Administration, Standard Interpretations, 10/21/1999 Employee hand placement on and around suspended crane loads, Standard Number: 1926.550(a)(19),
    https://www.osha.gov/pls/oshaweb/owadisp.show_document?p_table=
    INTERPRETATIONS&p_id=23334


  3. Occupational Safety and Health Administration, Oil and Gas Well Drilling and Servicing eTool, https://www.osha.gov/SLTC/etools/oilandgas/index.html

  4. International Association of Drilling Contractors, Safety Alert 03-40, Nylon Sling Failed While Positioning BOP Control POD

Oklahoma FACE Program

The Oklahoma Fatality Assessment and Control Evaluation (OKFACE) is an occupational fatality surveillance project to determine the epidemiology of all fatal work-related injuries and identify and recommend prevention strategies. FACE is a research program of the National Institute for Occupational Safety and Health (NIOSH), Division of Safety Research. These fatality investigations serve to prevent fatal work-related injuries in the future by studying the work environment, the worker, the task the worker was performing, the tools the worker was using, the energy exchange resulting in injury, and the role of management in controlling how these factors interact.

To contact Oklahoma State FACE program personnel regarding State-based FACE reports, please use information listed on the Contact Sheet on the NIOSH FACE web site Please contact In-house FACE program personnel regarding In-house FACE reports and to gain assistance when State-FACE program personnel cannot be reached.
