A Gas Drilling Rig Worker Died During a Well Cleanout Operation

Oklahoma Case Report

Oil Rig - Kelly and Kelly Bushing


On This Page...

  • Summary

  • Introduction

  • Investigation

  • Cause of Death

  • Recommendations and     Discussion

  • References

  • Oklahoma FACE Program

Oklahoma Case Report: 03-OK-034-01

Summary

A 27-year-old gas drilling rig worker died on May 23, 2003 from blunt force trauma to the head, neck, and chest during a cleanout operation at the well. At the time of the incident, the victim was working within eight feet of the kelly on the drilling rig floor. Compressed air was used to blow out the conductor pipe, but due to a lack of communication, the compressor was turned on before the valves were prepared to control the flow of debris out of the hole. The excess pressure caused the kelly bushing, drillpipe slips, and debris to be blown out of the rotary table. The victim was struck by these objects and was pronounced dead on arrival to the hospital.

Oklahoma Fatality Assessment and Control Evaluation (OKFACE) investigators concluded that to prevent similar occurrences, employers should:

  • Develop, implement, and enforce comprehensive written practices and procedures for all drilling operations.

  • Monitor all job tasks to ensure that employees are not directly positioned in areas that are subject to flying parts, debris, and other hazards.

  • Ensure that all employees are trained properly and possess the skills necessary to recognize and control hazards for all operations in which they participate.

  • Develop and utilize a written emergency action plan and train employees on site-specific emergency response plans.

Introduction

A 27-year-old gas drilling rig worker died on May 23, 2003 from blunt force trauma to the head, neck, and chest after he was struck by the kelly bushing and drillpipe slips. OKFACE investigators reviewed the death certificate, related local news articles, and reports from the sheriff's office, Medical Examiner, Occupational Safety and Health Administration (OSHA),
and emergency medical services (EMS). Interviews were conducted with company officials, including safety representatives, at the company headquarters on August 19, 2003.

The drilling company that employed the decedent had been in business for 33 years and, at the time of the incident, employed 140 individuals. The victim had five years of experience in drilling operations and had worked for this drilling company off and on over that five-year period. However, during this time of employment, he had been working for the employer for only three days. At the time of the incident, the decedent was part of a five-person crew that was working at a gas well site, which had been in operation for three days (Figure 1). The victim was fatally injured during a cleanout operation. The cleanout process is a normal part of drilling operations and involves blowing out mud, water, and debris by pressurizing the well shaft with either air or liquid as the standard cleaning media. The victim had performed the cleanout process many times in the past.

The company did have a comprehensive written safety program in place at the time of the incident. The victim had received formal company safety training and informal on-the-job training specifically relating to cleanout operations. Safety meetings were held regularly, and levels of training were measured by employee testing and demonstration. Two of the five workers at the site had recently joined the crew from other drilling companies; however, they each had years of experience in oil and gas drilling.

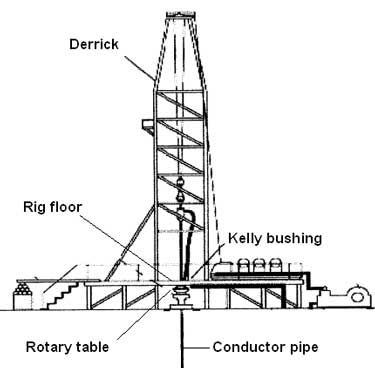

Figure 1. Oil Rig Diagram (not to scale)
Figure 1. Oil Rig Diagram (not to scale)
Back to Top

Investigation

At the time of the incident, the rig floor and working surfaces were level and dry; the weather was warm with light to no wind. The victim was working with four other crew members on a gas drilling rig, wearing the necessary personal protective equipment (e.g., steel toe boots, hard hat, eye protection). Prior to the incident, the decedent was assigned the task of driller and was asked to find the bottom of the conductor hole with the kelly (Figure 2). The kelly is used to transmit power (rotary motion) from the rotary table and kelly bushing to the drillstring (Table 1). After unlatching the brake handle, the driller allowed the kelly to free fall to the bottom. The uncontrolled fall caused the kelly to become jammed with debris, such as water, mud, and other material, that had collected in the conductor hole since the time it was originally drilled for the well. As a result, a cleanout operation became necessary. Cleanout procedures involving air or mud drilling fluid are acceptable norms in the oil and gas drilling industry; however, drilling fluid is more commonly used than compressed air.

Table 1. Helpful Definitions
Conductor Hole a large diameter hole, lined with pipe, that varies in depth depending on the local geology; the hole where the crew starts the top of the well; also called a starter hole
Kelly a long square or hexagonal steel bar with a hole drilled through the middle for a fluid path; goes through the kelly bushing, which is driven by the rotary table
Kelly Bushing an adapter that connects the kelly to the rotary table
Rotary Table a revolving or spinning section of the drillfloor that provides power to turn the drillstring
Drillstring a combination of tools (e.g., the drillpipe, the bottomhole assembly, and other tools) used to make the drill bit turn at the bottom of the wellbore
Conductor Pipe a casing string usually put in the well first to prevent the sides of the hole from caving into the wellbore

After the kelly became jammed, a senior driller was assigned to take over the brake handle and kelly; however, the decedent remained approximately eight feet away on the rig floor. A newly hired, yet experienced, derrickman had the job of running the air compressor. While the drillers were switching positions, the derrickman realized that he had not started that particular type of compressor in quite some time and left the rig floor to seek help from another driller onsite.

Figure 2. Kelly and Kelly Bushing
Figure 2. Kelly and Kelly Bushing

Figure 3. Diagram of Kelly, Bushing, and Rotary Table
Figure 3. Diagram of Kelly, Bushing, and Rotary Table
In normal cleanout operation procedures, certain valves are closed prior to turning on the compressed air, which allows control over the flow of debris out of the hole and into a catch pond. Once the valves are prepared, the driller indicates to the derrickman that the area is ready for the compressed air. At some point between the senior driller preparing for cleanout and the derrickman leaving the floor to turn on the air compressor, there was a lack of communication and the air compressor was activated without the senior driller’s knowledge, prior to the prescribed valves being shut. After starting the air compressor, the derrickman returned to the rig floor and, as he walked to his next assignment, the rotary table erupted. The pressure normally used to complete the cleanout work is a minimum of 20 pounds per square inch. Within minutes, the kelly had pressurized well beyond this point to 150 pounds per square inch. The victim, who was still on the rig floor in close proximity to the kelly, was also unaware that the air compressor had been turned on. The compressed air, at full pressure with no valves closed to control or direct the flow, blew the kelly bushing, drillpipe slips, and debris out of the rotary table; all of which struck and landed on the victim.

The victim was the only crew member injured by the flying debris and equipment. The victim was pulled away from the hazardous area, laid down, and kept calm. There was some initial confusion over whom to call for help, which caused a lack of quick medical response. Apparently no emergency numbers were posted on-site; although, a cell phone was available, there may have been some trouble getting through. One of the crew members went to the nearest farmhouse to find out how to call local EMS, while another was sent out to the road to direct first responders. EMS arrived at the scene approximately 30 minutes after the incident and loaded the victim for transport to the hospital. The victim was pronounced dead on arrival to the hospital, which was approximately 20 miles away.


Cause of Death

The Medical Examiner's report listed the cause of death as blunt force trauma of the head, neck, and chest.

Back to Top

Recommendations/Discussion

Recommendation # 1: Employers should develop, implement, and enforce comprehensive written practices and procedures for all drilling operations.

Discussion: Employers should develop, implement, and enforce standard operating practices and procedures for all drilling operations to safeguard against unexpected energization or startup of equipment/machinery, or hazardous energy release during servicing and maintenance. These written practices and procedures should be reviewed at least annually. In this incident, standard operating procedures for performing cleanout, and training to those procedures, were needed to help monitor air and hydraulic pressure and control pumps and compressors. Had a standard written operating procedure been in place and complied with by the crew, this incident may have been prevented. While using compressed air is a normal cleanout practice, the area around the rotary table becomes highly hazardous during the procedure and requires certain precautions, such as following each step in order, knowing where debris will go before the air is started, and clearing crew members from dangerous areas. With enforced, documented procedures, the chances of inadvertent hazardous energy release are reduced.


Recommendation #2: Employers should monitor all job tasks to ensure that employees are not directly positioned in areas that are subject to flying parts, debris, and other hazards.

Discussion: The employer and designated site supervisors should monitor the site for hazardous situations and non-compliance. Any deviations from written job procedures or safety standards, or any unsafe situations that arise from site-specific work, should be addressed by management and corrected immediately. All employees should take steps to address unsafe work procedures and to eliminate them by accepted means of control or modification, including, but not limited to, engineering controls, work practice controls, and the use of personal protective equipment. Employees should be aware of how they are positioned at all times to avoid standing, sitting, or working in hazardous zones.


Recommendation #3: Employers should ensure that all employees are trained properly and possess the skills necessary to recognize and control hazards for all operations in which they participate.

Discussion: Employees should be trained thoroughly and formally on the standard operating procedures that are relevant to their duties and assignments. In addition, employers should consider thorough skill evaluations or screening for functional skills prior to hire or work assignment. For operations, such as performing cleanout on a drilling rig, the potential hazards of blowouts during the operation should be addressed, as well as ways to minimize or eliminate the hazards. In addition, training should emphasize the importance of establishing and maintaining good communication between all crew members while performing all work procedures. Documentation of the training should be kept on file with the company, and periodic retraining of employees should be done. Retraining should always occur when there are changes in the equipment, processes, or hazards present. Oil and gas industries should consider consulting sources such as publications from the International Association of Drilling Contractors (IADC; http://www.iadc.org/) (Link Updated 4/1/2013) and OSHA’s Oil and Gas Well Drilling and Servicing eTool (https://www.osha.gov/SLTC/etools/oilandgas/ general_safety/general_safety.html) for information on safety and training.


Recommendation #4: Employers should develop and utilize a written emergency action plan and should train employees on site-specific emergency response plans.

Discussion: The emergency action plan should be in written form and include all necessary steps to take when an emergency occurs. The plan should contain steps for providing emergency first aid and cardiopulmonary resuscitation (CPR), the phone numbers for all emergency providers and appropriate company officials, and the proper documentation forms to complete following an emergency. The plan should also address fire evacuation and prevention, severe weather procedures, and workplace violence and safety. Every employee should be trained annually on the company's emergency action plan. Information should be provided on the scope, purpose, and application of the plan. Site-specific information (e.g., severe weather shelters, fire evacuation plan, location of nearest medical care facilities, and pertinent contact phone numbers) should be given to or posted for employees each time a rig is moved. Employees should know where copies of site-specific plans are kept and who to notify if the plans are not readily available. In addition, remote jobsites should have cell phones, two-way radios, or other reliable means of quick communication in the event of an emergency.
