Appendix Methods Used for Creating a National Lyme Disease Risk Map*

Appendix Methods Used for Creating a National Lyme Disease Risk Map


Lyme disease risk is measurable as a function of two epidemiologic parameters entomologic risk and human exposure. Entomologic risk for Lyme disease is defined as the density per unit area of host-seeking nymphal ticks infected with Borrelia burgdorferi (1). Field studies needed for determination of entomologic risk require trained entomologists, and such studies are limited to a narrow seasonal window within the life-cycle of vector ticks. Limited resources preclude the direct measurement of entomologic risk over large geographic areas; therefore, indirect measures were used to estimate risk to develop this national Lyme disease risk map. First, data on vector distribution, abundance, B. burgdorferi infection prevalence, and human exposure were compiled on a county-unit scale for the United States. Then geographic information systems (GIS) technology was used to combine these data and categorize each of the 3,140 counties into four risk classes.


Vector Distribution

Vector data were obtained from a national distribution map of Ixodes scapularis and I. pacificus, which was previously published by CDC (2). These data delineate three classes of tick distribution based on all published and unpublished county collection records available to CDC before 1998. The three classes are as follows:

  • established populations (less than or equal to 6 ticks reported or more than one life stage);
  • reported occurrence (<6 ticks reported and only one life stage); and
  • absence of ticks or missing data.

Although these data are currently the best source of vector distribution available, many gaps exist because of uneven sampling efforts among the counties. Therefore, a neighborhood analysis GIS procedure was used to modify the original tick distribution to smooth absent data and minimize the impact of reporting gaps. In this process, the original tick coverage map was rasterized to 1 km, and each cell was given a numeric value corresponding to the county tick class (0 = absent; 1 = reported; and 2 = established). A neighborhood analysis was performed using ERDAS IMAGINE** image-processing software. This function employed a moving filter (25 by 25 km), which summed the values of the area surrounding each 1-km pixel and created a new focally smoothed image. An outline of counties was overlaid to define boundaries on the smoothed map, and new values were summed from the total pixel values for each county. The three original vector classes were maintained with the new classification. The revised map employed a threshold reclassification based on mean summary statistics generated from the neighborhood analysis. This procedure resulted in a weighted value for each county that was determined by the classes of surrounding counties, thus smoothing the map to minimize rough edges and isolated holes in the data. The modified vector distribution increased the number of counties containing I. scapularis and I. pacificus from 1,058 counties (34% of total counties) in the original data set to 1,404 (45% of total) in the modified version. This modification resulted in greater continuity among adjacent counties, as well as a less-conservative description of vector distribution.

Infection Prevalence in Vectors

The prevalence of infection with B. burgdorferi is low throughout the distribution of I. pacificus (3) with the exception of one California county (4). Within the entire southern distribution of I. scapularis, prevalence of infection with B. burgdorferi is low compared with the Northeast and upper Midwest (3). One possible reason for these differences is the geographic variations in abundance of hosts that are competent reservoirs of infection for immature ticks. The white-footed mouse (Peromyscus leucopus) is the principal host for ticks in the Northeast and upper Midwest and is a competent reservoir for the spirochete. But in the Southeast and West Coast regions, reptiles appear to serve as major hosts for immature ticks, and reptiles are either inefficient or incompetent reservoir hosts for spirochetes. This pattern of tick-host association might result from the greater population density of lizards relative to rodents (5<|>), resulting in reduced transmission rates in regions where lizards dominate. An index was created to map the effect of host-species composition on infection prevalence in I. scapularis ticks.

A literature survey was conducted to identify a complete list of hosts for I. scapularis (6). A total of 38 nondomestic host species was identified, including 32 mammal species and 6 reptile species. Birds were excluded because of their migratory nature and their uncertain role as natural reservoir hosts. Species range maps were obtained from the literature (7,8), then digitized by county into ArcView GIS*** software for presence or absence of reservoir hosts. The county data were then summed to determine the total host species composition available for I. scapularis.

A ratio of total reptiles divided by the total hosts multiplied by 100 was calculated for each county and mapped. The reptile ratio index delineates those areas having a high reptile-to-total-hosts ratio (>10) and forms a linear boundary, below which reptiles are more likely to serve as hosts for ticks. The geographic boundary runs roughly on the 38 north latitude from Virginia to Missouri. This reptile ratio illustrates that although total hosts in the northern states can be equal to those of the southern states, reptiles dilute the force of transmission, thus lowering the prevalence of infection in ticks and creating less of a risk to humans in the South.


CDC case reports were used as a measure of human exposure to entomologic risk. County-specific data were compiled for the years 1994 1997. Counties comprising the ninetieth percentile of all human cases reported during this 4-year period were selected to represent counties with high human exposure. These 137 counties reported a minimum total of 23 cases. Heuristic, or procedure-based decision rule, was employed to construct the national Lyme disease risk map. Expert decision rule was applied to construct the risk classification as follows:

Risk Classes

  • High Risk. Counties where I. scapularis or I. pacificus populations are established and where prevalence of infection is predicted to be high, and which are in the top tenth percentile of counties reporting human cases during the 4-year period, 1994 1997.
  • Moderate Risk. Counties where I. scapularis or I. pacificus populations are established and where the prevalence of infection is predicted to be high.
  • Low Risk. Counties where I. scapularis populations are established, but infection prevalence is predicted to be low, or where I. scapularis populations are reported but not established, or where I. pacificus populations are either established or reported.
  • Minimal or No Risk. Counties where neither I. scapularis nor I. pacificus are established or reported.

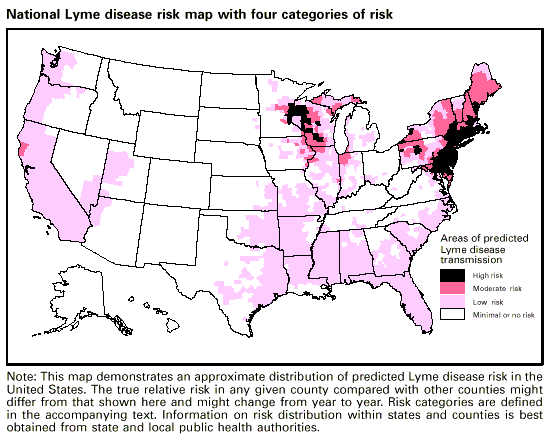

The national map illustrates a clear focal pattern of Lyme disease risk with the greatest risk occurring in the Northeast and upper Midwest regions. Overall, 115 (4%) counties were classified as high risk, followed by 146 (5%) moderate risk, 1,143 (36%) low risk, and 1,736 (55%) as minimal or no-risk counties.


Appendix References

  1. Mather TN. Dynamics of spirochete transmission between ticks and vertebrates. In: Ecology and Environmental management of Lyme Disease. H Ginsberg, ed. New Brunswick, NJ: Rutgers University Press 1993;43 62.
  2. Dennis DT, Nekomoto TS, Victor JC, William SP, Piesman J. Reported distribution of Ixodes scapularis and Ixodes pacificus ticks (Acari: Ixodidae) in the United States. J Med Entomol 1998;35:629 38.
  3. Lane RS, Piesman J, Burgdorfer W. Lyme borreliosis: relation of its causative agent to its vectors and hosts in North America and Europe. Annu Rev Entomol 1991;36:587 609.
  4. Clover JR, Lane RS. Evidence implicating nymphal Ixodes pacificus (Acari: Ixodidae) in the epidemiology of Lyme disease in California. Am J Trop Med Hyg 1995;53:237 40.
  5. Apperson CS, Levine JF, Evans TL, Braswell A, Heller J. Relative utilization of reptiles and rodents as hosts by immature Ixodes scapularis (Acari: Ixodidae) in the coastal plain of North Carolina, USA. Exp Appl Acarol 1993;17:719 31.
  6. Anderson JF, Magnarelli LA. Enzootiology of Borrelia burgdorferi in the Northeast and North Central United States. In: Proceedings of the IX International Congress of Acarology, Columbus, OH 1994 (in press).
  7. Hall ER. Mammals of North America. Vol II, 2nd ed. New York, NY: John Wiley & Sons, 1981.
  8. Society for the Study of Amphibians and Reptiles. Catalogue of American Amphibians and Reptiles. [published irregularly as loose-leaf pages] New York, NY; 1963 Present. Subscription information available at <>. Accessed April 1999.

* Source: Durland Fish, Ph.D. and Carrie A. Howard, M.A. Department of Epidemiology and Public Health, Yale University School of Medicine, New Haven, Connecticut.

** ERDAS IMAGINE map production computer software, a product of ERDAS, Inc., 2801 Buford Highway, Atlanta, GA 30329-2137, (404) 248-9000, <>.

*** ARCView GIS computer software, a product of Environmental Systems Research Institute, Inc., 380 New York Street, Redlands, CA 92373-8100, <>.
