Prevention of Pneumococcal Disease Among Infants and Children --- Use of 13-Valent Pneumococcal Conjugate Vaccine and 23-Valent Pneumococcal Polysaccharide Vaccine: Recommendations of the Advisory Committee on Immunization Practices (ACIP)


Prepared by

J. Pekka Nuorti, MD

Cynthia G. Whitney, MD

Division of Bacterial Diseases, National Center for Immunization and Respiratory Diseases


This report originated in the Division of Bacterial Diseases, Rana Hajjeh, MD, Director, and the National Center for Immunization and Respiratory Diseases, Anne Schuchat, MD, Director.


Corresponding preparer: Cynthia G. Whitney, MD, National Center for Immunization and Respiratory Diseases, CDC, 1600 Clifton Rd, NE, MS C-23, Atlanta GA 30333. Telephone: 404-639-4927; Fax: 404-639-3970; E-mail: cwhitney@cdc.gov.


SUMMARY

On February 24, 2010, a 13-valent pneumococcal polysaccharide-protein conjugate vaccine (PCV13 [Prevnar 13, Wyeth Pharmaceuticals Inc., marketed by Pfizer Inc.]) was licensed by the Food and Drug Administration (FDA) for prevention of invasive pneumococcal disease (IPD) caused among infants and young children by the 13 pneumococcal serotypes covered by the vaccine and for prevention of otitis media caused by serotypes also covered by the 7-valent pneumococcal conjugate vaccine formulation (PCV7 [Prevnar, Wyeth]). PCV13 contains the seven serotypes included in PCV7 (serotypes 4, 6B, 9V, 14, 18C, 19F, and 23F) and six additional serotypes (serotypes 1, 3, 5, 6A, 7F, and 19A). PCV13 is approved for use among children aged 6 weeks--71 months and supersedes PCV7, which was licensed by FDA in 2000.

This report summarizes recommendations approved by the Advisory Committee on Immunization Practices (ACIP) on February 24, 2010, for the use of PCV13 to prevent pneumococcal disease in infants and young children aged <6 years. Recommendations include 1) routine vaccination of all children aged 2--59 months, 2) vaccination of children aged 60--71 months with underlying medical conditions, and 3) vaccination of children who received ≥1 dose of PCV7 previously (CDC. Licensure of a 13-valent pneumococcal conjugate vaccine [PCV13] and recommendations for use among children---Advisory Committee on Immunization Practices [ACIP], 2010. MMWR 2010;59:258--61). Recommendations also are provided for targeted use of the 23-valent pneumococcal polysaccharide vaccine (PPSV23, formerly PPV23) in children aged 2--18 years with underlying medical conditions that increase their risk for contracting pneumococcal disease or experiencing complications of pneumococcal disease if infected.

The ACIP recommendation for routine vaccination with PCV13 and the immunization schedules for children aged ≤59 months who have not received any previous PCV7 or PCV13 doses are the same as those published previously for PCV7 (CDC. Preventing pneumococcal disease among infants and young children: recommendations of the Advisory Committee on Immunization Practices [ACIP]. MMWR 2000;49[No. RR-9]; CDC. Updated recommendation from the Advisory Committee on Immunization Practices [ACIP] for use of 7-valent pneumococcal conjugate vaccine [PCV7] in children aged 24--59 months who are not completely vaccinated. MMWR 2008;57:343--4), with PCV13 replacing PCV7 for all doses. For routine immunization of infants, PCV13 is recommended as a 4-dose series at ages 2, 4, 6, and 12--15 months. Infants and children who have received ≥1 dose of PCV7 should complete the immunization series with PCV13. A single supplemental dose of PCV13 is recommended for all children aged 14--59 months who have received 4 doses of PCV7 or another age-appropriate, complete PCV7 schedule. For children who have underlying medical conditions, a supplemental PCV13 dose is recommended through age 71 months. Children aged 2--18 years with underlying medical conditions also should receive PPSV23 after completing all recommended doses of PCV13.

Introduction

Streptococcus pneumoniae (pneumococcus) remains a leading cause of serious illness, including bacteremia, meningitis, and pneumonia among children and adults worldwide. It is also a major cause of sinusitis and acute otitis media (AOM). In February 2000, a 7-valent pneumococcal polysaccharide-protein conjugate vaccine (PCV7; Prevnar, Wyeth) was licensed by the Food and Drug Administration (FDA) for use among infants and young children in the United States (1). In prelicensure randomized clinical trials, PCV7 was demonstrated to be safe and highly efficacious against invasive pneumococcal disease (IPD), moderately efficacious against pneumonia, and somewhat effective in reducing otitis media episodes and related office visits (2--4). On the basis of the results of these clinical trials, in 2000, ACIP recommended routine use of PCV7 for all children aged 2--23 months and for children aged 24--59 months who are at increased risk for pneumococcal disease (e.g., children with anatomic or functional asplenia, sickle cell disease (SCD), HIV infection or other immunocompromising condition, or chronic illness including chronic heart or lung disease, cerebrospinal fluid leaks, and diabetes mellitus) (1). In 2007, ACIP revised its recommendation for routine use to include all children aged 2--59 months (5). National Immunization Survey data indicate that in 2009, PCV7 coverage among children aged 19--35 months was 92.6% for ≥3 doses and 80.4% for ≥4 doses (6).

The safety, efficacy, and effectiveness in practice of PCV7 and other pneumococcal conjugate vaccines has been established in multiple settings in both industrialized and developing countries (7). In 2007, the World Health Organization (WHO) recommended that all countries incorporate pneumococcal conjugate vaccines in their national infant immunization programs (8).

On February 24, 2010, a new 13-valent pneumococcal polysaccharide-protein conjugate vaccine (PCV13 [Prevnar13], Wyeth Pharmaceuticals, Inc., marketed by Pfizer, Inc.) was approved by FDA for prevention of IPD caused among infants and young children by the 13 serotypes in the vaccine (9). PCV13 is formulated and manufactured using the same processes as PCV7 and was licensed by FDA on the basis of studies demonstrating safety and an ability comparable to that of PCV7 to elicit antibodies protective against IPD (10). PCV13 is approved for use among children aged 6 weeks--71 months and replaces PCV7, which is made by the same manufacturer. PCV13 contains the seven serotypes included in PCV7 (serotypes 4, 6B, 9V, 14, 18C, 19F, and 23F) and six additional serotypes (1, 3, 5, 6A, 7F, and 19A). PCV13 also is approved for the prevention of otitis media caused by the seven serotypes also covered by PCV7; no efficacy data for prevention of otitis media are available for the six additional serotypes.

This report summarizes the recommendations approved by ACIP on February 24, 2010, for the prevention of pneumococcal disease among infants and children aged ≤18 years (11) and replaces the previous ACIP recommendations for preventing pneumococcal disease in children (1,5,12). It also provides updated information regarding changes in the epidemiology of pneumococcal disease in the United States after the routine PCV7 infant vaccination program began in 2000.

Background

Clinical Efficacy of Pneumococcal Conjugate Vaccines

The efficacy of pneumococcal conjugate vaccines (PCVs) was evaluated in randomized, controlled trials among children aged <2 years. A prelicensure clinical efficacy trial of PCV7 conducted among 37,868 healthy children at a health maintenance organization in northern California indicated that PCV7 was 97.4% (95% confidence interval [CI] = 82.7%--99.9%) efficacious against IPD caused by vaccine serotypes (the primary endpoint) among fully vaccinated infants (2). A recently updated systematic review by the Cochrane Collaboration included results from five randomized, controlled trials to evaluate PCVs (including PCV7 and experimental 9-valent and 11-valent vaccine formulations) against IPD and/or pneumonia. The trials conducted in various settings in both industrialized countries (U.S. general population [2] and Native American children [13]) and developing countries (South Africa [14], the Gambia [15], and the Philippines [16]) included 113,044 children aged <2 years (17). PCVs were demonstrated to be efficacious in preventing IPD, X-ray--confirmed pneumonia, and clinically diagnosed pneumonia. Among healthy children aged <2 years, the pooled PCV vaccine efficacy estimate was 80% (95% CI = 58%--90%) for vaccine-type IPD, 58% (95% CI = 29%--75%) for IPD caused by all serotypes, 27% (95% CI = 15%--36%) for chest X-ray--confirmed pneumonia meeting WHO criteria (18), and 6% (95% CI = 2%--9%) for clinical pneumonia.

In a clinical trial conducted in South Africa, a 9-valent investigational PCV was administered to infants as a 3-dose schedule at age 6, 10, and 14 weeks without a booster dose. This vaccine prevented IPD among HIV-infected children, although the point estimate was somewhat lower (65%; 95% CI = 24%--86%) than among HIV-uninfected children (83%; 95% CI = 39%--97%) (14). After a 6-year follow-up, vaccine efficacy against IPD declined substantially among HIV-infected children but not among healthy children (19).

Before PCV7 introduction, Streptococcus pneumoniae was detected in 28%--55% of middle-ear aspirates among children with AOM (1). In a randomized, clinical trial conducted in Finland in which the bacterial etiology of AOM was determined by myringotomy, the efficacy of PCV7 in preventing culture-confirmed, vaccine serotype AOM episodes was 57% (95% CI = 44%--67%) (4); the overall net reduction in AOM caused by any pneumococcal serotype was 34% (95% CI = 21%--45%). Overall, PCV7 prevented 6%--7% of all AOM episodes in the clinical trials (2,4,20); reductions also were observed for the outcomes of frequent otitis media (9%) and tympanostomy tube placement (20%) (2).

Updated Safety Data from PCV7 Postmarketing Studies

A systematic review of 42 pre- and postmarketing infant studies did not identify major safety problems with PCV7 or other PCVs (21). In general, PCV7 injection-site reactions were mild and self-limited. The incidence of high fever was <1%. Mild local and systemic reactions were sometimes more frequent after the second and third vaccination than after the first vaccination. A small increase in hospitalizations for reactive airway disease was observed among PCV7 and PCV9 recipients compared with controls in two large clinical trials (2,14). However, a 3-year follow-up study of safety outcomes among subjects in the U.S. IPD efficacy study did not demonstrate an association of PCV7 with increased health-care use for reactive airway disease (22).

According to data from the Vaccine Adverse Event Reporting System (VAERS), a U.S. passive reporting system for adverse events occurring after immunization, the majority of reports received during the first 2 years after PCV7 licensure among children were minor adverse events similar to those observed previously in prelicensure clinical trials (23). Approximately 31.5 million PCV7 doses were distributed during this time period, and VAERS received 4,154 reports of events that had occurred within 3 months of receiving PCV7 (rate: 13 reports per 100,000 PCV7 doses distributed). In 74.3% of reports, the child had received other vaccines concurrently with PCV7. Serious events were described in 608 (14.6%) reports, consistent with the frequency of serious adverse events (14.2%) reported to VAERS for other childhood vaccines (24).

Epidemiology of Pneumococcal Disease Among Children Aged <5 Years After Routine PCV7 Immunization

Invasive Pneumococcal Disease

Effectiveness data from observational postmarketing studies of the U.S. routine infant PCV7 immunization program have been consistent with the results of prelicensure randomized clinical trials (25--29). In the United States, major changes have occurred in the epidemiology of pneumococcal disease after routine infant vaccination with PCV7 began in 2000 (7,30). Substantial decreases were observed in the incidence rates of invasive pneumococcal disease, including pneumococcal meningitis (31,32) among young children.

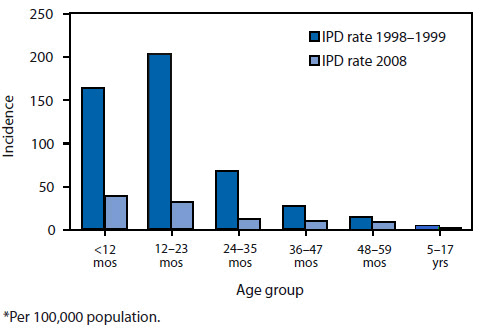

Data from the Active Bacterial Core Surveillance [ABCs], an active population- and laboratory-based surveillance system (http://www.cdc.gov/abcs/index.html) indicate that the overall incidence of IPD among children aged <5 years decreased from approximately 99 cases per 100,000 population during 1998--1999 to 21 cases per 100,000 population in 2008 (rate difference: 78 cases per 100,000 population; percentage reduction: 79%) (Figure 1) (CDC, unpublished data, 2009). The reductions in overall IPD resulted from a 99% decrease in disease caused by the seven serotypes in PCV7 and serotype 6A, a serotype against which PCV7 provides some cross-protection (28). The decreases have been offset partially by increases in IPD caused by nonvaccine serotypes, in particular 19A (33,34). In the general U.S. population, the overall rates of IPD have leveled off and remained at approximately 22--25 annual cases per 100,000 children aged <5 years since 2002 (34). Although the absolute rate increase in IPD attributable to 19A in the general population has been small (approximately five cases per 100,000 population) compared with the decreases in PCV7-type disease (35--37), surveillance of one small population (Alaska Native children living in a remote region) showed a reduced overall vaccine benefit because of an increase in IPD caused by non-PCV7 types, particularly serotype 19A (38,39).

Trends in Antimicrobial Resistance

The emergence of pneumococcal strains resistant to penicillin and other antibiotics complicates the treatment of pneumococcal disease and might reduce the effectiveness of recommended treatment regimens. Before PCV7 was introduced, five of the seven serotypes included in PCV7 (6B, 9V, 14, 19F, and 23F) accounted for approximately 80% of penicillin-nonsusceptible isolates (1). Following routine PCV7 use, the incidence of IPD caused by penicillin-resistant strains decreased 57% overall and 81% among children aged <2 years. These decreases were a result of declines in nonsusceptible PCV7 serotypes. (40). Decreases also were observed for erythromycin-resistant strains and those resistant to multiple antibiotics. However, IPD caused by penicillin-nonsusceptible non-PCV7 serotypes has increased, and most of the resistant infections now are caused by serotype 19A (33,35,37,40--42). In addition, the emergence of multidrug-resistant serotype 19A strains causing meningitis and other severe invasive infections (31,43), pneumococcal mastoiditis (44), and treatment failures for otitis media have been reported (45).

Trends in Noninvasive Pneumococcal Disease

Decreases in rates of hospitalizations and ambulatory care visits for community-acquired pneumonia have been reported consistently among children aged <2 years after PCV7 introduction (46--49). From pre-PCV7 baseline (1997--1999) to 2006, the rate of hospitalizations for pneumonia attributable to all causes decreased 35% (from 12.5 to 8.1 cases per 1,000 population) among children aged <2 years (46). Compared with the average annual number of pneumonia admissions during 1997--1999, this rate reduction represented an estimated 36,300 fewer pneumonia hospitalizations in 2006, when an estimated 67,400 total hospitalizations for all causes of pneumonia occurred among children aged <2 years in the United States. No similar reduction in pneumonia hospitalizations has been observed in children aged 2--4 years.

An estimated 13 million episodes of AOM occur annually in the United States among children aged <5 years (50,51). Population-based studies using various national and regional administrative and insurance databases have reported decreases in rates of ambulatory visits for otitis media (52,53), rates of frequent otitis media (defined as three episodes in 6 months or four episodes in 1 year) and tympanostomy-tube placement (54) among young children following PCV7 introduction. Although the observed trends in health-care use for otitis media might have been affected by factors other than PCV7 (e.g., secular trend or changes in coding or clinical practices), even modest vaccine-associated reductions in otitis media would result in substantial health benefits because of the substantial burden of disease (51).

Indirect Effects of the PCV7 Vaccination Program in Unvaccinated Populations

Substantial evidence has accumulated to demonstrate that routine infant PCV7 vaccination has reduced transmission of PCV7 serotypes, resulting in a reduced incidence of IPD among unvaccinated persons of all ages, including infants too young to be vaccinated and elderly persons (7,27,30,55,56). Among persons aged 18--49 years, 50--64 years, and ≥65 years, overall rates of IPD have decreased 34%, 14%, and 37% respectively from 1998--1999 to 2008; decreases in rates of disease caused by PCV7 serotypes ranged from 90% to 93% (CDC, unpublished data, 2009).

The measured indirect effects on noninvasive pneumococcal disease have been less clear (49). However, a time-series analysis of national hospital discharge data during 1997--2004 indicated a statistically significant decrease after PCV7 introduction in rates of all-cause pneumonia hospitalizations among young adults but not among other adult age groups (47).

Invasive Pneumococcal Disease Caused by Serotypes Covered in PCV13

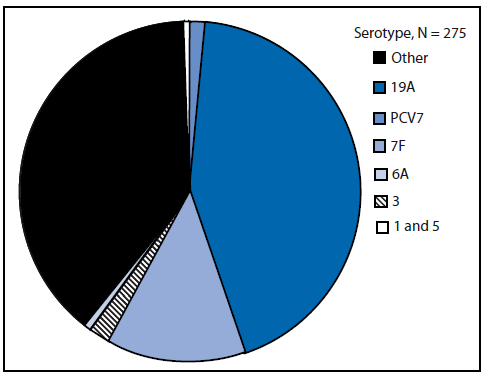

ABCs data indicate that in 2008, a total of 61% of IPD cases among children aged <5 years were attributable to the serotypes covered in PCV13, with serotype 19A accounting for 43% of cases; PCV7 serotypes caused <2% of cases (Figure 2). Three of the six additional serotypes, (19A, 7F, and 3) accounted for 99% of IPD cases, serotypes 1 and 5 together caused 0.6% of cases, and serotype 6A caused 0.6% of cases. In age groups ≥5 years, the serotypes covered in PCV7 caused from 4% to 7%, and the serotypes in PCV13 caused 43%--66% of IPD cases, respectively (Figure 3).

In 2008, children aged <24 months accounted for more than two thirds of all IPD cases among children aged <5 years; overall rates were highest among children aged <12 months and 12--24 months (rate: 39 and 32 cases per 100,000 population, respectively) (Table 1). Among children aged >24 months, rates decreased markedly with age. Rates of all IPD and IPD caused by serotypes covered by PCV13 were twice as high in black children as in white children. However, no difference was found between the proportion of IPD cases caused by PCV13 serotypes in black children compared with white children (CDC, unpublished data, 2009).

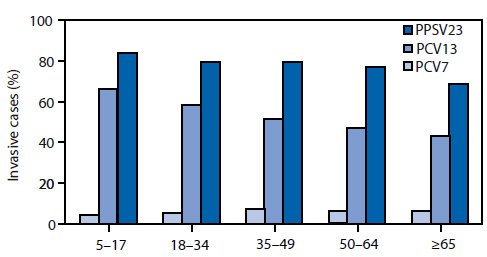

Projections from active surveillance data to the U.S. population indicate that in 2008, an estimated 4,100 cases of IPD (rate: 20 cases per 100,000 population) occurred among children aged <5 years in the United States; PCV13 serotypes caused an estimated 2,500 cases (rate: 12 cases per 100,000 population) (CDC, unpublished data, 2009).

Children at Increased Risk for Pneumococcal Infections

Rates of pneumococcal infections in the United States vary among demographic groups, with higher rates occurring among infants, young children, elderly persons, Alaska Natives, and certain American Indian populations. Although racial disparities have diminished since PCV7 was introduced (57,58), black children continue to have higher rates of IPD compared with white children (Table 1). The risk for IPD is highest among persons who have congenital or acquired immunodeficiency, abnormal innate immune response, HIV-infection, or absent or deficient splenic function (e.g., SCD or congenital or surgical asplenia) (1,12). Children with cochlear implants are also at substantially increased risk for pneumococcal meningitis (59,60).

Several studies have evaluated antibody responses to PCV7 among children with SCD and among HIV-infected children (1,61). The antibody responses among infants with SCD generally have been comparable to infants without SCD (62--64). For HIV-infected children, the antibody responses to various PCV formulations have been slightly lower but generally are comparable to those in HIV-uninfected children (65,66). Studies of small numbers of children with SCD and HIV infection suggested that PCV7 is safe and immunogenic when administered to children aged ≤13 years (1,65). In addition, a multicenter study indicated that a schedule of 2 doses of PCV7 followed by 1 dose of 23-valent pneumococcal polysaccharide vaccine (PPSV23, formerly PPV23) was safe and immunogenic in highly active antiretroviral therapy (HAART)--treated HIV-infected children and adolescents aged 2--19 years who had not received PCV7 in infancy (however, 75% of subjects had received PPSV23 previously) (67). In addition, PCV7 was as immunogenic among low birth weight and preterm infants as among normal birth weight and full-term infants (68).

After the introduction and widespread use of HAART in the United States, rates of IPD among HIV-infected children decreased, but whether further declines have occurred after routine PCV7 vaccination is unclear, and rates remain elevated compared with those for HIV-uninfected children (69). Rates among children with SCD have decreased substantially following PCV7 introduction but still remain higher than among healthy children, particularly among older children with SCD (70,71).

During 2006--2008, of 475 IPD cases in children aged 24--59 months in the ABCs surveillance population of approximately 18 million persons, 51 (11%) cases occurred in children with underlying medical conditions that are indications for PPSV23 (Table 2). Of these 51 cases, 23 (45%) were caused by PCV13 serotypes (Table 3). The 11 serotypes included in PPSV23 but not in PCV13 (serotype 6A is not included in PPSV23) caused an additional eight (16%) cases (CDC, unpublished data, 2009).

13-Valent Pneumococcal Conjugate Vaccine

Vaccine Composition

PCV13 (Prevnar13) contains polysaccharides of the capsular antigens of S. pneumoniae serotypes 1, 3, 4, 5, 6A, 6B, 7F, 9V, 14, 18C, 19A, 19F, and 23F, individually conjugated to a nontoxic diphtheria cross-reactive material (CRM) carrier protein (CRM197). A 0.5-mL PCV13 dose contains approximately 2.2 μg of polysaccharide from each of 12 serotypes and approximately 4.4 μg of polysaccharide from serotype 6B; the total concentration of CRM197 is approximately 34 μg. The vaccine contains 0.02% polysorbate 80 (P80), 0.125 mg of aluminum as aluminum phosphate (AlPO4) adjuvant, 5mL of succinate buffer, and no thimerosal preservative (9). Except for the addition of six serotypes, P80, and succinate buffer, the formulation of PCV13 is the same as that of PCV7.

Evaluation of PCV13 Immunogenicity

The immunogenicity of PCV13 was evaluated in a randomized, double-blind trial (Study 004) in which 663 healthy U.S. infants received at least 1 dose of PCV13 or PCV7 according to the routine immunization schedule (at ages 2, 4, 6, and 12--15 months) (10). To compare PCV13 antibody responses with those for PCV7, criteria for noninferior immunogenicity after 3 and 4 doses of PCV13 (pneumococcal IgG antibody concentrations measured by enzyme-linked immunosorbent assay [ELISA]) were defined for the seven serotypes common to PCV7 and PCV13 and for the six additional serotypes in PCV13. Functional antibody responses were evaluated by opsonophagocytosis assay in a subset of the study population (10). Evaluation of these immunologic parameters indicated that PCV13 induced levels of antibodies that were comparable to those induced by PCV7 and shown to be protective against IPD (10). PCV13 immunogenicity data are not yet available for children in the specific groups at increased risk for pneumococcal disease.

Immune Responses After the 3-Dose Infant Series among Healthy Infants

Among infants receiving the 3-dose primary infant series, responses to ten of the PCV13 serotypes met the prespecified primary endpoint criterion (percentage of subjects achieving an IgG seroresponse of ≥0.35 μg/mL 1 month after the third dose) (72--74). Responses to shared serotypes 6B and 9V and new serotype 3 did not meet this criterion (Table 4). For serotypes 6B and 9V, however, the differences were small. Among PCV13 recipients, the IgG seroresponse rate for serotype 3 was 63.5%; for the other additional serotypes, the seroresponse rate ranged from 89.7% (serotype 5) to 98.4% (serotypes 7F and 19A). Detectable opsonophygocytic antibodies (OPA) to serotypes 6B, 9V, and 3 indicated the presence of functional antibodies (74,75). The percentages of subjects with an OPA antibody titer ≥1:8 were similar for the seven common serotypes among PCV13 recipients (range: 90%--100%) and PCV7 recipients (range: 93%--100%); the proportion of PCV13 recipients with an OPA antibody titer ≥1:8 was >90% for all of the 13 serotypes (10).

Immune Responses After the Fourth Dose Among Healthy Children

After the fourth dose, the noninferiority criterion for IgG geometric mean concentrations (GMCs) was met for 12 of the 13 serotypes; the noninferiority criterion was not met for the response to serotype 3 (Table 5). For the seven common serotypes, the IgG GMCs achieved after the 4-dose series were somewhat lower for PCV13 than for PCV7, except for serotype 19F (Table 5). Detectable OPA antibodies were present for all serotypes after the fourth dose; the percentage of PCV13 recipients with an OPA titer ≥1:8 ranged from 97% to 100% for the 13 serotypes and was 98% for serotype 3. Following the fourth dose, the IgG GMCs and OPA geometric mean titers (GMTs) were higher for all 13 serotypes compared with those after the third dose.

Antibody Responses to PCV13 Booster Dose Among Toddlers Who Received 3 Doses of Either PCV7 or PCV13 as Infants

In a randomized, double-blind trial conducted in France, 613 infants were randomly assigned to three groups in a 2:1:1 ratio: 1) PCV13 at ages 2, 3, 4, and 12 months [PCV13/PCV13] or 2) PCV7 at ages 2, 3, and 4 months followed by PCV13 at age 12 months [PCV7/PCV13] or 3) PCV7 at ages 2, 3, 4, and 12 months [PCV7/PCV7] (Study 008) (10). A single PCV13 dose administered at age 12 months to children who had received 3 doses of PCV7 resulted in higher IgG GMCs to all six additional serotypes compared with IgG GMCs after 3 PCV13 doses administered to infants at 2, 3, and 4 months. One month after the 12-month dose, the IgG GMCs for the seven common serotypes were similar among all three groups. For five of the six additional serotypes, IgG GMCs among PCV7/PCV13 recipients were somewhat lower than among PCV13/PCV13 recipients; for serotype 3, GMC was somewhat higher among the PCV7/PCV13 group (Table 6). The clinical relevance of these lower antibody responses is not known (9).

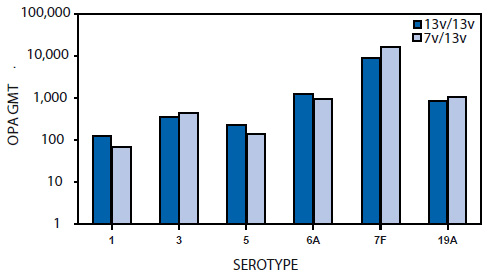

After the 12-month dose of PCV13, the percentage of children with OPA antibody titers ≥1:8 for the six additional serotypes were comparable regardless of whether the children had received PCV7 or PCV13 in infancy. The OPA GMTs among PCV7/PCV13 recipients also were similar to those among PCV13/PCV13 recipients (Figure 4) (Study 008) (10).

Immune Responses Among Previously Unvaccinated Older Infants and Children

In an open-label, nonrandomized and noncontrolled study of PCV13 conducted in Poland (Study 3002), children aged 7--11 months, 12--23 months, and 24--71 months who had not received pneumococcal conjugate vaccine doses previously were administered 1, 2, or 3 doses of PCV13 according to age-appropriate immunization schedules (10). Descriptive analyses suggest that these three schedules resulted in antibody responses to each of the 13 serotypes that were comparable to the IgG GMCs achieved after the 3-dose infant PCV13 series in the U.S. immunogenicity trial (Study 004), except for serotype 1, for which IgG GMC was lower among children aged 24--71 months (1.78 μg/mL compared with 2.03 μg/mL) in the U.S. study (10). Compared with the immune responses after 4 doses of PCV13, the responses induced by the recommended catch-up schedules among children aged ≥7 months might result in lower antibody concentrations for some serotypes The clinical relevance of these lower antibody responses is not known (9).

Adverse Reactions After Administration of PCV13 in Clinical Trials

The safety of PCV13 was assessed in 13 clinical trials in which approximately 15,000 doses were administered to 4,729 healthy children aged 6 weeks--15 months using various 3-dose primary infant schedules (at ages 2, 4, and 6 months; 2, 3, and 4 months; and 6, 10, and 14 weeks) with a booster dose at 12--15 months, concomitantly with other routine pediatric vaccines. Three primary safety studies were conducted in the United States. In these studies, 1,908 children received at least 1 dose of PCV13 concomitantly with routine U.S. pediatric vaccinations. The comparison group of 2,760 children received at least 1 dose of PCV7. Supportive data for safety outcomes were provided by a study among 354 children aged 7--71 months, who received at least 1 dose of PCV13 (9). No safety or immunogenicity studies for PVC13 have been completed among infants born prematurely, children aged ≥72 months, or children who have underlying medical conditions that increase the risk for pneumococcal disease.

The most commonly reported (in ≥20% of subjects) solicited adverse reactions that occurred within 7 days after each dose of PCV13 were injection-site reactions, fever, decreased appetite, irritability, and increased or decreased sleep (9). The incidence and severity of solicited local reactions at the injection site (pain, tenderness, erythema, and induration/swelling) and solicited systemic reactions (irritability, drowsiness/increased sleep, decreased appetite, fever, and restless or decreased sleep) were similar in the PCV13 and PCV7 groups (Table 7). The frequency of adverse reactions was similar after each vaccine dose in the series and is described in the PCV13 package insert (9). The frequency of unsolicited adverse events was also similar in the two groups. The following unsolicited adverse events occurred in >1% of infants and toddlers: diarrhea, vomiting, and rash. Reactions occurring in <1% of infants and toddlers following PCV13 included crying, hypersensitivity reaction (including face edema, dyspnea, and bronchospasm), seizures (including febrile seizures), and urticaria or urticaria-like rash. The most commonly reported serious adverse events included bronchiolitis, gastroenteritis, and pneumonia. Serious adverse events reported following vaccination occurred among 8.2% of PCV13 recipients and 7.2% of PCV7 recipients. No statistically significant differences in types or rates of serious adverse events or unanticipated adverse events were identified (9). These data suggest that the safety profiles of PCV13 and PCV7 are comparable.

The safety of a supplemental dose of PCV13 was evaluated in an open-label study in which 284 healthy U.S. children aged 15--59 months who had received 3 or 4 doses of PCV7 previously received 1 or 2 doses of PCV13; children aged 15--23 months received 2 PCV13 doses, and children aged 24--59 months received 1 PCV13 dose (9). The incidence and severity of solicited local reactions and systemic adverse reactions that occurred within 7 days after 1 dose of PCV13 among children aged 15--59 months who had received 4 PCV7 doses were comparable to those among children receiving their fourth dose of PCV13 (see Tables 7 and 8 in PCV13 package insert) (9).

Certain rare adverse events that were observed during PCV7 postmarketing surveillance are included in the PCV13 package insert (9) although they were not observed in the PCV13 clinical trials: hypotonic-hyporesponsive episode, apnea, anaphylactic/anaphylactoid reaction including shock, angioneurotic edema, erythema multiforme, injection-site dermatitis, injection-site pruritus, injection-site urticaria, and lymphadenopathy localized to the region of the injection site. The causal relation of these events to vaccination is unknown.

Vaccine Administration

PCV13 is administered intramuscularly as a 0.5-mL dose and is available in latex-free, single-dose, prefilled syringes. PCV13 has been administered concurrently with vaccines containing the following antigens with no adverse effects on immunogenicity or safety: diphtheria, tetanus, acellular pertussis, Haemophilus influenzae type b, inactivated poliomyelitis, rotavirus, hepatitis B, meningococcal serogroup C, measles, mumps, rubella, and varicella (9). PCV13 can be administered at the same time as other routine childhood vaccinations if administered in a separate syringe at a separate injection site. The safety and efficacy of concurrent administration of PCV13 and PPV23 has not been studied, and concurrent administration is not recommended.

Precautions and Contraindications

Before administering PCV13, vaccination providers should consult the package insert for precautions, warnings, and contraindications (9). Vaccination with PCV13 is contraindicated in persons known to have a severe allergic reaction (e.g., anaphylaxis) to any component of PCV13 or PCV7 or to any diphtheria toxoid-containing vaccine. Before PCV13 administration, all precautions should be taken to prevent allergic or any other adverse reactions, including a review of the patient's vaccination history for possible sensitivity to the vaccine or similar vaccines and for previous vaccination-related adverse reactions to determine the presence of any contraindication to vaccination with PCV13 and to allow an assessment of risks and benefits.

Apnea following intramuscular vaccination has been observed in some infants born prematurely. Decisions about when to administer an intramuscular vaccine, including PCV13, to infants born prematurely should be based on consideration of the individual infant's medical status and potential benefits and possible risks of vaccination (9).

All vaccines can be administered to persons with minor acute illness (e.g. diarrhea or mild upper-respiratory tract infection with or without fever). Persons with moderate or severe acute illness should be vaccinated as soon as the acute illness has improved, after screening for contraindications.

Adverse events after receipt of any vaccine, even if it is not clear that the vaccine caused the adverse event, should be reported to the Vaccine Adverse Event Reporting System (VAERS). Two methods can be used to report to VAERS: 1) online reporting through the secure VAERS internet site (https://vaers.hhs.gov) is encouraged; 2) a reporting form can be downloaded at http://vaers.hhs.gov/esub/index and sent via fax to 877-721-0366 or mailed to VAERS, P.O. Box 1100, Rockville, MD 20849 when completed. Providers can contact VAERS at telephone 1-800-822-7967 or by e-mail at info@vaers.org to request a reporting form or obtain assistance in reporting.

23-Valent Pneumococcal Polysaccharide Vaccine

The 23-valent pneumococcal polysaccharide vaccine (PPSV23) (Pneumovax23, marketed by Merck & Company, Inc.) was licensed in the United States in 1983 and contains 23 capsular polysaccharide antigens of S. pneumoniae: 1, 2, 3, 4, 5, 6B, 7F, 8, 9N, 9V, 10A, 11A, 12F, 14, 15B, 17F, 18C, 19A, 19F, 20, 22F, 23F, and 33F. One 0.5-mL dose of PPSV23 contains 25 µg of each polysaccharide in isotonic saline solution with 0.25% phenol as a preservative.

Since 1997, ACIP has recommended use of PPSV23 for persons aged ≥2 years who have certain underlying medical conditions (Table 2) (12). Children with these conditions are at increased risk for IPD and might have infections caused by a broader range of serotypes than healthy children (76). Therefore, since 2000, children aged ≥2 years with underlying medical conditions have been recommended to receive PPSV23 after PCV7 (1). PPSV23 is not recommended to be used alone for this group of children because conjugate vaccines have several advantages over PPSV23, including immunologic priming and induction of immunologic memory, reduction in nasopharyngeal carriage of vaccine type pneumococci, likely greater effectiveness against serotypes currently causing most IPD, and evidence for effectiveness against noninvasive syndromes including nonbacteremic pneumonia and otitis media (61,77).

Data regarding safety of PPSV23 when administered after PCV13 are not available. However, clinical experience of PPSV23 use since 1983 has not raised safety concerns, and the reported safety profile for PPSV23 in children appears similar to adults; the most common adverse reactions following PPSV23 vaccination are mild local reactions (e.g., pain at the injection site, erythema, and swelling) that usually resolve within 48 hours of vaccination (12,78). Immunogenicity data on sequential vaccination with PCV13 followed by PPSV23 are not available, but studies on sequential vaccination with PCV7 followed by PPSV23 have demonstrated that PPSV23 elicits robust booster responses for the seven serotypes in common with PCV7 (79). Limited and inconclusive data are available on the efficacy and effectiveness of PPSV23 among children with underlying medical conditions (78), and the clinical effectiveness of PPSV23 among children who have received PCV7 or PCV13 is unknown. No safety or immunogenicity data are available regarding the vaccine sequence of PPSV23 followed by PCV13; limited safety and immunogenity data are available for PPSV23 followed by PCV7 among HIV-infected children and adolescents (67).

Few studies have evaluated the immunogenicity and safety of >1 dose of PPSV23 in children systematically (78,79). Recent studies evaluating immune responses elicited by PPSV23 among adults (80,81) have reported a concern that vaccination with unconjugated pneumococcal polysaccharide antigens might induce hyporesponsiveness (i.e., lower antibody response) on rechallenge with pneumococcal antigens, including PCV7, although the clinical relevance of this immunologic observation is unknown (79). No data are available to indicate whether administration of PPSV23 to children before or after PCV13 might result in hyporesponsiveness to subsequent doses of PCV13.

Recommendations for Use of PCV13 and PPSV23

ACIP recommends use of PCV13 for 1) all children aged 2--59 months and 2) children aged 60--71 months with underlying medical conditions that increase their risk for pneumococcal disease or complications (Table 2).

No Previous PCV7/PCV13 Vaccination

  • The ACIP recommendation for routine vaccination with PCV13 and the vaccination schedules for infants and toddlers through age 59 months who have not received any previous PCV7 or PCV13 doses are the same as those previously published for PCV7 (Table 8) (1,5). PCV13 is recommended as a 4-dose series at ages 2, 4, 6, and 12--15 months.

Infants Aged 2--6 Months

  • The primary infant series consists of 3 doses of PCV13. Infants receiving their first dose at age ≤6 months should receive 3 doses of PCV13 at intervals of approximately 8 weeks (the minimum interval is 4 weeks). The fourth (booster) dose is recommended at age 12--15 months and at least 8 weeks after the third dose (Table 8).
  • Newborns should begin the schedule at age 2 months, although the first dose can be administered as early as 6 weeks. For prematurely born infants (i.e., <37 weeks' gestation) who are medically stable enough to be vaccinated, PCV13 should be administered at the recommended chronologic age concurrent with other routine vaccinations.

Children Aged ≥7 Months

  • Healthy children aged 7--59 months who have not been vaccinated with PCV7 or PCV13 previously should receive 1--3 doses of PCV13, depending on their age at the time when vaccination begins and whether underlying medical conditions are present. Children aged 24--71 months with underlying medical conditions should receive 2 doses of PCV13 (Table 8). Interruption of the vaccination schedule does not require reinstitution of the entire series or the addition of extra doses.

Infants Aged 7--11 Months

  • Three doses are recommended. The first 2 doses should be administered with an interval of at least 4 weeks between doses. The third dose should be administered at age 12--15 months, at least 8 weeks after the second PCV13 dose.

Children Aged 12--23 Months

  • Two doses are recommended, with an interval of at least 8 weeks between doses.

Children Aged >24 Months

  • Unvaccinated healthy children aged 24--59 months should receive a single dose of PCV13.
  • Unvaccinated children aged 24--71 months with underlying medical conditions (Table 2) should receive 2 doses of PCV13 with an interval of at least 8 weeks between doses.

Children Vaccinated Previously with PCV7 or PCV13

Incomplete PCV7/PCV13 Vaccination

Children Aged <24 Months

  • Infants and children aged <24 months who have received ≥1 dose of PCV7 should complete the vaccination series with PCV13 (Tables 9 and 10).
  • Children aged 12--23 months who have received 3 doses of PCV7 before age 12 months are recommended to receive 1 dose of PCV13, administered at least 8 weeks after the most recent dose of PCV7 (Tables 9 and 10). This dose will constitute their fourth and final PCV dose, completing the series for the PCV7 serotypes and eliciting an immune response to the six additional serotypes.
  • No additional PCV13 doses are recommended for children aged 12--23 months who received 2--3 doses of PCV7 before age 12 months and at least 1 dose of PCV13 at age ≥12 months.

Children Aged >24 Months

  • Similar to the previous ACIP recommendation for use of PCV7 (5), 1 dose of PCV13 is recommended for all healthy children aged 24--59 months with any incomplete PCV schedule (PCV7 or PCV13) before age 24 months (Table 11).
  • For children aged 24--71 months with underlying medical conditions who have received any incomplete schedule of <3 doses of PCV (PCV7 or PCV13) before age 24 months, 2 doses of PCV13 are recommended (Table 11).
  • For children with underlying medical conditions who have received 3 doses of PCV (PCV7 or PCV13), a single dose of PCV13 is recommended through age 71 months. The minimum interval between doses is 8 weeks.

Complete PCV7 Vaccination

  • A single supplemental dose of PCV13 is recommended for all children aged 14--59 months who have received 4 doses of PCV7 or another age-appropriate, complete PCV7 schedule.
  • For children who have underlying medical conditions, a single supplemental PCV13 dose is recommended through 71 months. This includes children who have received PPSV23 previously. PCV13 should be administered at least 8 weeks after the most recent dose of PCV7 or PPSV23. This will constitute the final dose of PCV for these children (Tables 9 and 11).

Children Aged 6--18 Years With Certain High-Risk Conditions

  • A single dose of PCV13 may be administered for children aged 6--18 years who have not received PCV13 previously and are at increased risk for invasive pneumococcal disease because of anatomic or functional asplenia, including sickle cell disease, immunocompromising conditions such as HIV-infection, cochlear implant, or cerebrospinal fluid leaks, regardless of whether they have previously received PCV7 or PPSV23.
  • Routine use of PCV13 is not recommended for healthy children aged ≥5 years.

Administration of PPSV23 After PCV7 Or PCV13 Among Children Aged 2--18 Years Who Are at Increased Risk for Pneumococcal Disease

  • Children aged ≥2 years with underlying medical conditions (Table 2) should receive PPSV23 after completing all recommended doses of PCV13. These children should be administered 1 dose of PPSV23 at age ≥2 years and at least 8 weeks after the most recent dose of PCV13 (Table 12).
  • Children who have received PPSV23 previously also should receive recommended PCV13 doses.
  • Children aged 24--71 months with underlying medical conditions who received <3 doses of PCV7 before age 24 months should receive a series of 2 doses of PCV13 followed by 1 dose of PPSV23 administered ≥8 weeks later.
  • Children aged 24--71 months with underlying medical conditions who received any incomplete schedule of 3 doses of PCV7 before age 24 months should receive 1 dose of PCV13 followed by 1 dose of PPSV23 administered ≥8 weeks later.
  • When elective splenectomy, immunocompromising therapy, or cochlear implant placement is being planned, PCV13 and/or PPSV23 vaccination should be completed at least 2 weeks before surgery or initiation of therapy.

Revaccination With PPSV23 Among Children at Highest Risk

  • A second dose of PPSV23 is recommended 5 years after the first dose of PPSV23 for children who have anatomic or functional asplenia, including SCD, HIV infection, or other immunocompromising condition (Table 12). No more than 2 PPSV23 doses are recommended.

American Indian/Alaska Native Children

  • Routine use of PPSV23 after PCV7 or PCV13 is not recommended for American Indian/Alaska Native children aged ≥24 months without underlying medical conditions. However, in special situations, public health authorities might recommend use of PPSV23 after PCV7 or PCV13 for American Indian/Alaska Native children who are living in areas/communities in which risk for invasive pneumococcal disease is increased.

Public Health Considerations

Evaluation of PCV13 Cost-Effectiveness

Two independent analyses of PCV13 cost-effectiveness reviewed according to ACIP guidelines were presented for consideration by ACIP (82,83). Although these studies used different modeling approaches and assumptions about potential vaccine effects, their conclusions were largely consistent with each other. A CDC study using a cohort model to evaluate cost-effectiveness among infants and young children did not include the potential indirect PCV13 effects among unvaccinated groups in the analysis because of uncertainty regarding their magnitude and timing and the fact that varying assumptions about indirect effects were demonstrated to have major impact on PCV7 cost-effectiveness estimates (84). The results suggested that from a societal perspective, routine infant vaccination of a single birth cohort with PCV13 replacing PCV7 was likely cost-saving with over $142 million saved including productivity gains (82). The 1-dose supplemental PCV13 vaccination was determined to be comparable in cost-effectiveness to other accepted public health interventions, costing approximately $20,200 per discounted quality adjusted life-year (QALY) saved (range in sensitivity analyses: $11,200--$35,500 per discounted QALY saved). Another study sponsored by the PCV13 manufacturer used a decision-analytic Markov model that also predicted substantial net savings for the routine PCV13 program compared with PCV7 (83). The 1-dose supplemental PCV13 program was found to be cost-saving under the assumption that the occurrence of indirect effects would be accelerated by ≥6 months as the supplemental dose would reduce nasopharyngeal carriage of certain PCV13 serotypes among older children; when indirect effects were not included, the supplemental dose program was still considered cost-effective.

Postlicensure Monitoring

Because PCV13 was licensed by FDA on the basis of safety and immunogenicity studies alone, without efficacy data, postlicensure monitoring of vaccine effectiveness will be particularly important in addition to the usual postlicensure monitoring of safety. Also, because wide use of PCV13 can be expected to alter the distribution of S. pneumoniae serotypes, continued monitoring of the epidemiologic patterns of pneumococcal disease will remain necessary (85). FDA and CDC will conduct postlicensure monitoring for adverse events associated with PCV13 using VAERS data and CDC will conduct a case-control study of vaccine effectiveness using ABCs data; the manufacturer will also conduct postlicensure studies.

In June 2009, the Council of State and Territorial Epidemiologists adopted a new position statement and case definition for national surveillance of IPD and recommended enhanced surveillance to track the effects of PCV13 vaccination program (86). Cases of IPD among all ages are now reportable in many states, and health departments in these states forward the data to CDC through the National Notifiable Diseases Surveillance System. The national surveillance case definition for invasive S. pneumoniae disease is isolation of S. pneumoniae from a normally sterile body site (e.g., blood, cerebrospinal fluid, or, less commonly, joint, pleural or pericardial fluid). Epidemiologically important data (e.g., demographics, information on underlying conditions associated with increased risk of IPD, vaccination status, and antibiotic susceptibility testing results) should be reported for each case to track prevalence and geographic distribution of antibiotic resistance patterns.

In addition, public health officials might want to track changes in serotypes among IPD cases in their jurisdiction. A method for polymerase chain reaction (PCR)-based serotyping of S. pneumoniae isolates is now available for use by state and territorial public health laboratories. The PCR method or conventional serotyping can be used for distinguishing whether the detected cases are caused by serotypes included in PCV13 (87,88).
